Brushless Dc Motor
Brushless Dc Motor
Brushless Dc Motor
Power : 1100W ,1500W ,2200W
Speed Range : 200rpm-10000rpm

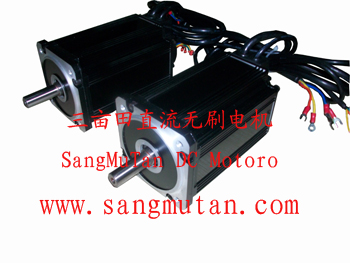

Features :This series of Brushless DC Motor Drive Unit is designed as specific systems for some small milling machine. This control system with perfect function, simple operation, capability of anti-interference, energy saving, low breakdown rate and easy maintenance which can achieve maximum torque and smoothness when at low speed. The whole system include brushless DC Motor (92BLM-GM-300HA,123BLM-IN-300HA) and brushless DC motor driver(BLMC-1100-300H, BLMC-2200-300HA), Function Board(SMT-1100), SMT-LCD , as shown in Figure F1-1. Before the installation, Please choose the brushless DC motor with voltage, power and speed of the corresponding driver.
Brushless motor Voltage (V) Power Speed (RPM) Application
92ET-BLM-300HA-SMT AC220V/110V 500W 3500RPM、6000RPM CNC Lathe
Milling Machine
Drilling Machine
92ET-BLM-300HA-SMT AC220V/110V 750W 6000RPM、12000RPM
92GM-BLM-300HA-SMT AC220V/110V 1100W 3500RPM、6000RPM
123HM-BLM-300HA-SMT AC220V/110V 1500W 3000RPM、6000RPM
123IN-BLM-300HA-SMT AC220V/110V 2000W 3500RPM、6000RPM
123IN-BLM-300HA-SMT AC220V/110V 2200W 4000RPM、6000RPM
Speed Range : 200rpm-10000rpm
Features :This series of Brushless DC Motor Drive Unit is designed as specific systems for some small milling machine. This control system with perfect function, simple operation, capability of anti-interference, energy saving, low breakdown rate and easy maintenance which can achieve maximum torque and smoothness when at low speed. The whole system include brushless DC Motor (92BLM-GM-300HA,123BLM-IN-300HA) and brushless DC motor driver(BLMC-1100-300H, BLMC-2200-300HA), Function Board(SMT-1100), SMT-LCD , as shown in Figure F1-1. Before the installation, Please choose the brushless DC motor with voltage, power and speed of the corresponding driver.
Brushless motor Voltage (V) Power Speed (RPM) Application
92ET-BLM-300HA-SMT AC220V/110V 500W 3500RPM、6000RPM CNC Lathe
Milling Machine
Drilling Machine
92ET-BLM-300HA-SMT AC220V/110V 750W 6000RPM、12000RPM
92GM-BLM-300HA-SMT AC220V/110V 1100W 3500RPM、6000RPM
123HM-BLM-300HA-SMT AC220V/110V 1500W 3000RPM、6000RPM
123IN-BLM-300HA-SMT AC220V/110V 2000W 3500RPM、6000RPM
123IN-BLM-300HA-SMT AC220V/110V 2200W 4000RPM、6000RPM
