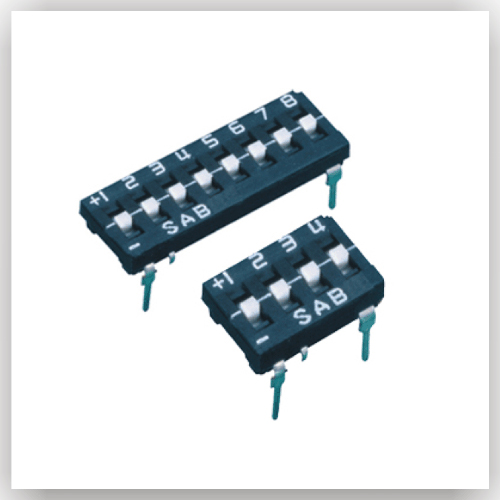

Selling 4-12 Positions Tri-state Dip Switch

1.TRI-STATE DIP SWITCH

SPECIFICATIONS

MECHANICAL
1).Operation Force: 1000gf max
2).Stroke: 0.9mm
3).Operation Temp: -45deg C to 85deg C
4).Storage Temp: -45deg C to 85deg C
5).Positions:4.6.7.8.9.10.12

ELECTRICAL
1).Electrical Life: 2000 operations cycles
2).Non-Switching Rating: 100mA, 50VDC
3).Switching Rating: 25mA, 24VDC
4).Contact Resistance: 50mOhms max. at initial;100mOhms max.after life test
5).Insulation Resistance: 100MOhms,500VDC
6).Dielectric Strength: 500VAC/1 minute

2.TRI-STATE DIP SWITCH

DIMENSIONS(mm)

Position NO:
4[10.80mm]; 6[15.88mm]; 7[18.42mm]; 8[20.76mm]; 9[23.30mm]; 10[25.84mm]; 12[30.92mm].

3.TRI-STATE DIP SWITCH

PACKAGE(Quantity per tube)

PN:
DTH-04[48pcs/tube]; DTH-06[33]; DTH-07[28]; DTH-08[25]; DTH-09[22]; DTH-10[20]; DTH-12[17].

4.TRI-STATE DIP SWITCH

MATERIALS

1).Base:PPS(UL94V-0), Black
2).Cover:PPS(UL94V-0), Black
3).Actuator:PP66(UL94V-0), White
4).Terminal:Nickel Cover(Pure) Tin Plated or Gold Plated
5).Tape Sealed:Polyester Film

RoHS Compliant tri-state dip switch with high quality
