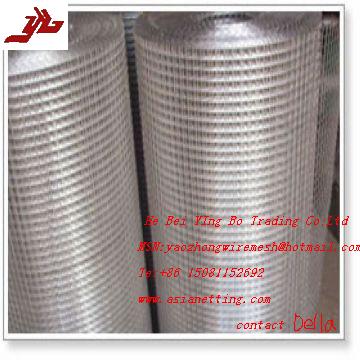

Welded Wire Mesh

BWG 12-24 welded mesh According to materials, we can offer electric galvanized welded wire mesh; hot-dip galvanized welded wire mesh and welded Stainless Steel Mesh. According to the wire diameter and opening, we can offer standard welded wire mesh or heavy type welded wire mesh. Differernt processing means we offer for your choice include: hot-dip galvanized welding wire mesh; hot-dip galvanized before welding wire mesh; electric-galvanised after welding wire mesh; electric-galvanised before welding wire mesh Specification List of Welded Wire Mesh Opening Wire Diameter In inch In metric unit(mm) 1/4" x 1/4" 6.4mm x 6.4mm 22,23,24 3/8" x 3/8" 10.6mm x 10.6mm 19,20,21,22 1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21,22,23 5/8" x 5/8" 16mm x 16mm 18,19,20,21, 3/4" x 3/4" 19.1mm x 19.1mm 16,17,18,19,20,21 1" x 1/2" 25.4mm x 12.7mm 16,17,18,19,20,21 1-1/2" x 1-1/2" 38mm x 38mm 14,15,16,17,18,19 1" x 2" 25.4mm x 50.8mm 14,15,16 2" x 2" 50.8mm x 50.8mm 12,13,14,15,16 Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request Galvanized Fencing Mesh Opening Wire Diameter In inch In metric unit(mm) 2" x 3" 50mm x 75mm 2.0mm,2.5mm,1.65mm 3" x 3" 75mm x 75mm 2.67mm,2.41mm,2.11mm,1.83mm,1.65mm 2" x 4" 50mm x 100mm 2.11mm,2.5mm 4" x 4" 100mm x 100mm 2.0mm,2.5mm Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.8m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. PVC Coated Welded Mesh Opening Wire Diameter In inch In metric unit(mm) 1/2" x 1/2" 12.7mm x 12.7mm 16,17,18,19,20,21 3/4" x 3/4" 19mm x 19mm 16,17,18,19,20,21 1" x 1" 25.4mm x 25.4mm 15,16,17,18,19,20 2" x 2" 50.8 mm x 50.8mm 14,15,16,17,18,19,20 Technical Note: 1,Standard roll length: 30m;width: 0.5m to 1.2m 2,Special sizes available at request 3,Packing: in waterproof paper in rolls. Custom packing available at request. Welded Wire Mesh is known as welded wire or welded mesh by some customers. The structure of this kind of wire mesh is strong, lasting and rust-resistant. It is galvanized after welding. Two ways of galvanization: hot dipped( hot galvanized) & cold(electric) galvanized. PVC coated welded wire mesh is made of quality welded low carbon steel wire mesh galvanized before, then coated with PVC powder or PE powder. The coated layer is even, strong adhere siveness and bright luster with long live good anti-corrosive property. All kinds of colors can be coated according to customers' special requirements. Stainless steel welded mesh is the most popular products in the industrial world. Packing in rolls ,waterproof papers. Welded wire mesh panel
