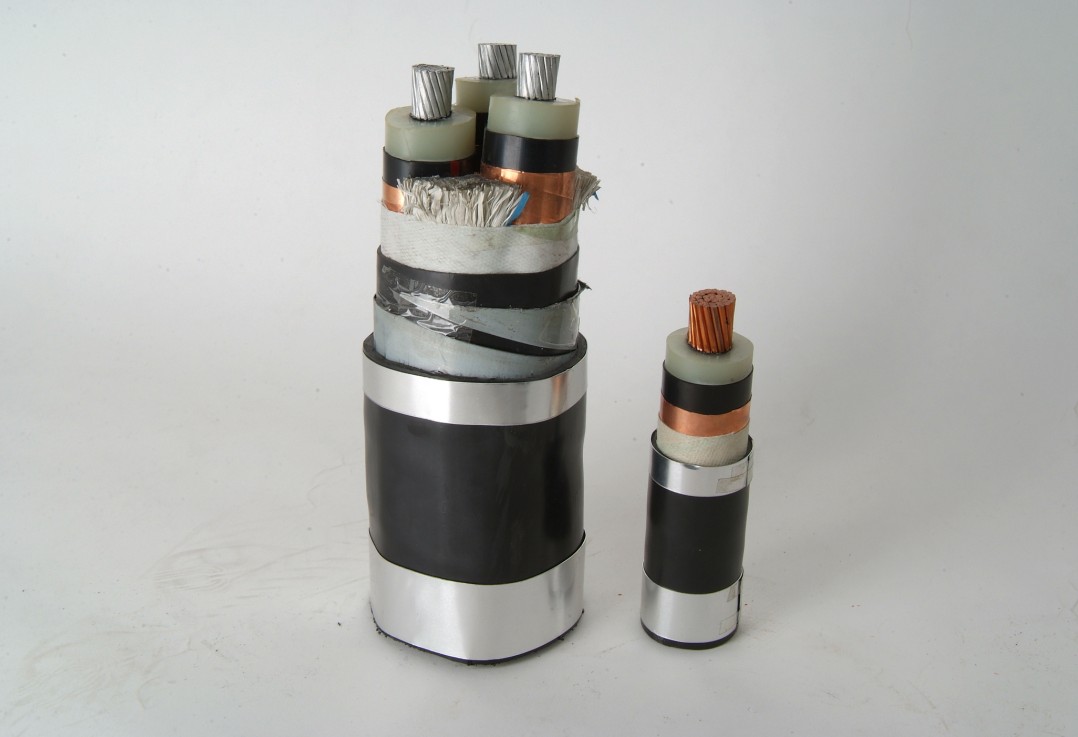

Xlpe Insulation Power Cable Of 35kv Or Lower

This cable is used to transmit power on the transmission and distribution line of A.C,reted volatge 35 kv or lower.In comparision with cable,it boasts not only excellent eletric character,mechanical character,heat and aging-resistant character,enviromental stress-resistant character and chemical corrosion-resistant character,but simple structure,light weight,no restriction by laying height and high temperature allowance for long-term working as wall.
1.this maximum working temperture of the conductor is 90.

During haveing a short(lasting less than 5 seconds)the max temperature of the cable conductor shall not be above 250.
Environment etmperature should be no lower than 0 for laying the cable.
2.Bending radius alloance.
Single core cable: nonarmored is 20D.armored is 15D
Cores cable:nonarmoredis 15D.armoredis 12D
Notes"D practical external diameter of cable.
