Plug Making Machine

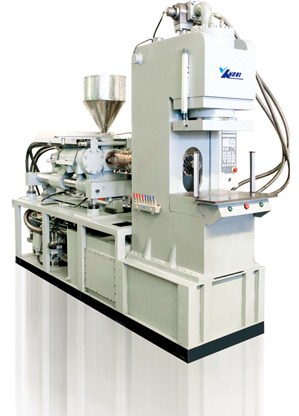

Plug Making Machine, XRC-850Item Code / Model Number:
XRC-850
Plug Making Machine
Injection Unit
Screw Diameter ￠32mm ￠36 ￠40
Injection pressure 2625 Kg/cm2 2074 1680
Theoretical Shot Volume 123Cm3 203 251
Shot Weight 113/4 g/oz 187/6.6 231/8.1
Injection Rate 65Cm3/sec 82 102
Screw Rotational Speed 7-230 rpm
Clamping System
Clamping Force 85ton
Top Platen Size 565*490 mm
Bottom Platen Size 670*490mm
Mold Dimenson 520*490mm
Min Mold Height 200 mm
Opening Stroke 300mm
Max.Open Pitch 500 mm
NozzleCenter Dayleight 150~190 mm
NozzleCenter Distance 75mm
Ejector Force 3.2 T
Ejector Stroke 70mm
Others
Pump Motor Power 15(11)HP(kw)
Hydraulic System Pressure 140 Kw/cm2
Barrel Heating Power 9.15 kw
Total Wattage 20.15kw
Oil Tank Capacity 180 L
Machine Weight 5.3T
Size(L×W×H) 2.6*1.5*2.9m
Screw Diameter ￠32mm ￠36 ￠40
Injection pressure 2625 Kg/cm2 2074 1680
Theoretical Shot Volume 123Cm3 203 251
Shot Weight 113/4 g/oz 187/6.6 231/8.1
Injection Rate 65Cm3/sec 82 102
Screw Rotational Speed 7-230 rpm
Clamping System
Clamping Force 85ton
Top Platen Size 565*490 mm
Bottom Platen Size 670*490mm
Mold Dimenson 520*490mm
Min Mold Height 200 mm
Opening Stroke 300mm
Max.Open Pitch 500 mm
NozzleCenter Dayleight 150~190 mm
NozzleCenter Distance 75mm
Ejector Force 3.2 T
Ejector Stroke 70mm
Others
Pump Motor Power 15(11)HP(kw)
Hydraulic System Pressure 140 Kw/cm2
Barrel Heating Power 9.15 kw
Total Wattage 20.15kw
Oil Tank Capacity 180 L
Machine Weight 5.3T
Size(L×W×H) 2.6*1.5*2.9m
- Place of Origin:
- China
- Brand:
- Xinrui
- Price Terms:
- FOB Ningbo
- Packing:
- wooden case
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 40 days
- Min Order Quantity:
- 1 set
- Keywords:
- vertical injection machine, barless injection machine
