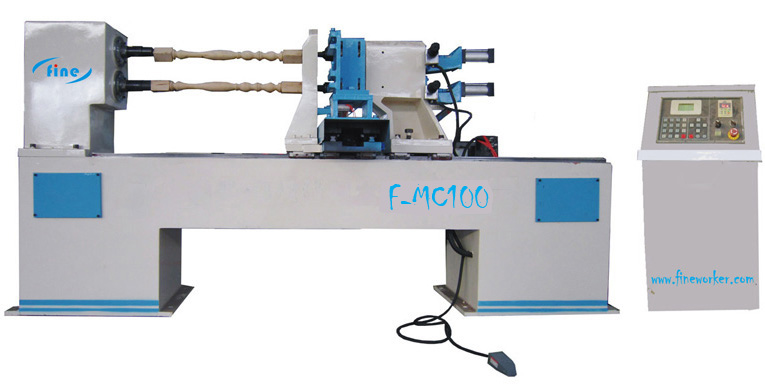

Cnc Wood Lathe (f-mc100)

The F-MC100 CNC wood turning lathe is suitable for the production of:
Round profiles, e.g. stair posts, railing rungs, chair or table-legs, wood vase, lamp parts, baseball bat, wood arts and crafts, pencil vase and so on.

Videos of the machine: (please open the videos in https://www.youtube.com)
https://www.youtube.com/watch?v=h_qm8zf48F8
https://www.youtube.com/watch?v=bg8uyoyWk5o
https://www.youtube.com/watch?v=aDJO4s83LVA
https://www.youtube.com/watch?v=xVo9TY_oB-E
https://www.youtube.com/watch?v=bgPPPAWh7DI
https://www.youtube.com/watch?v=oETVhkFBIXI

Advantages of F-MC100 CNC wood turning lathe:
(1). It is a very precise, efficient CNC wood turning lathe with first-class workmanship.
(2). In heavy steel construction to avoid vibration, processed surface is smooth and precision.
(3). Very simple to use and practice-oriented operation. Workers just know Arabic numerals could control the machine.
(4). Infinitely variable DC feed motor with feeding speed of 0 to 3600rpm.
(5). Single sided carbide blades for simple blade replacement
(6). Main parts are imported and excellent quality, e.g. linear rails,ballscrews,frqeuency charger are imported from Taiwan,high precision and durable.

Parameter:
1. Model: F-MC100
2. Quantity of axis: 2
3. Distance between two axis` centers: 1650mm (6.5inch)
4. Max.turning length: 1000mm ( 39.4inch)
5. Max. turning diameter when only use the upper axis: 400mm ( 15.7inch)
6. Max. turning diameter when use both axis: 160mm (6.29inch)
7. Max.feed speed: 33mm/s
8. Accuracy: 0.05mm
9. Spindle motor power: 4KW
10. Spindle diameter: 60mm (2.36inch)
11. Overall dimension: 2.5m*1m*1.5m (98inch*39inch*59inch)
12. Weight: 1200kg
13. Quantity of operating procedure: 108
14. Voltage: 380V/50Hz
