Rhzk6.8/30 Self Contained Air Breathing Apparatus With Med Certification

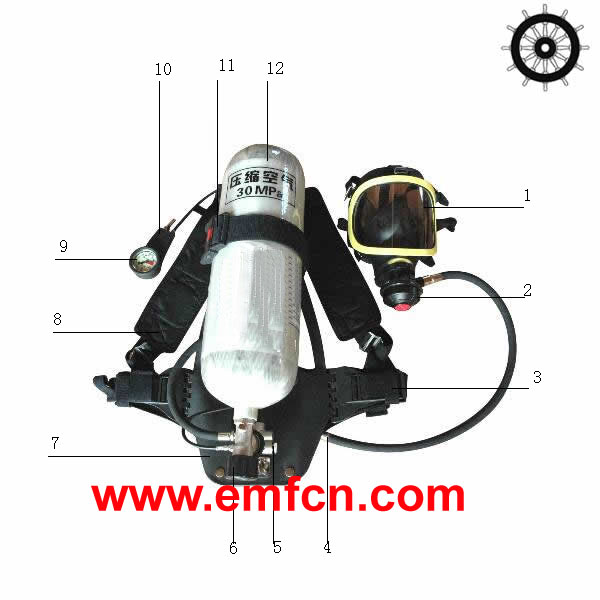

Reference to each components marked on above picture:
1. Full face Mask: Wide visual field window, high transpancy, wearable, steam free. Headcover made with net fabric, confortable and convenient. Silicon sealing, without toxicity or smell, well sealed.
2. Demand Valve: Simple and effective construction with stable air supply, small size.
3. Waist Belt: Fasten with buckle, length adjustable.
4. Fast tube connector: Small size, may be assembled with one hand, anti-loose function
5. Pressure reduce valve: Small size, light weight, stable air supply.
6. Cylinder valve: With high pressure safety device, easy to swich on and off.
7. Back support/ Back frame: Carbon fiber material, flame resitance, strong and light, with foam cushion, confortable to wear.
8. Shoulder Strape: Made with flame resistance ployester, length adjustable, with foam cusion, confortable to wear.
9. Air pressure guage: To see the air pressure and balance. Big size meter plate made of luminous material, readable in darkness, rubber protetive cover.
10. Alarming device: Just in front of chest, the alarming is easy to be heard, small size and light. It will be activated when the pressure in the cylinder is less than 5.5+/-0.5Mpa.
11. Cylinder belt: Rachet buckle construction, easure the cylinder is strongly fastened
12. Air cylinder: Aluminum cylinder insize and wraped with carbon fiber, 30Mpa working pressure, light and strong, with high pressure safety device.

Aluminum+Carbon Fiber Cylinder
Working Prssure(Mpa): 30
Cylinder Volume(L):6.8
Air Deposit(L): 1800
Duration time(Min): 50 to 60
Alarm Pressure (MPa): 4 to 6
Weight (Kg): Not more than 10
Packing Size(mm): 755x460x290

Design and manufactured according to the Requirements of the International Code for Fire Safety Systems and GA124-2004.
EC Type Examination Certificate No.: 54 775 - 08 Lux
