The Ideal Handheld Tester Series

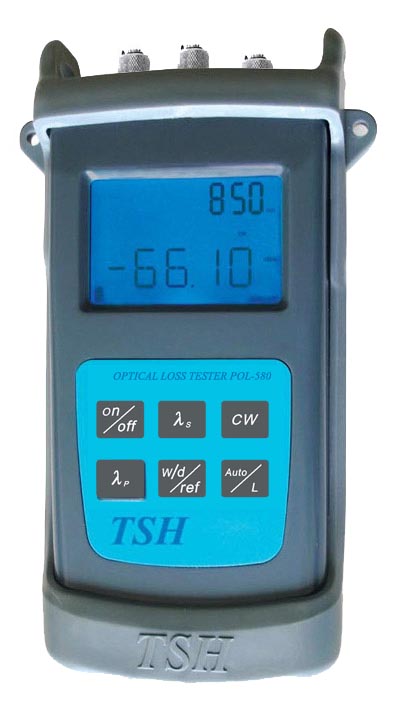

Fiber Loss Tester POL-580
POL-580 fiber loss tester series is the newest handheld optical tester. It can offer the best performance for the daily maintenance for fiber network, and CWDM system, DWDM system and FTTX network. At the same time, The perfect test functions and test insurance are ideal for indoor or field testing.

Auto Wavelength Recognition

Features:
 The most perfect testing function:

1. AutoWavelength-recognition. Power Meter can auto recognize the sources' optical wavelength, and switch automatically. No need for communication between launcher and acceptor. Saving test time and decreasing the potential error
2. 21 calibrated wavelengths offered to meet the customers' testing requirement. Such as FTTX 1490nm or DWDM 1625nm.
3. movable adapters available, FC, SC and ST provided.
4. Superior testing range: -70dBm~+10dBm or -50dBm~+26dBm, fully meet customers' testing requirements.
5. Visual fault locator(650 nm)(optional), best supplement for OTDR’s Dead Zone testing and fusion splicer’s testing.
6. RS-232 interface and 3000 storage capacity(as option).

 The most perfect power supplies and power management:
1. Internal rechargeable Li battery、AA battery and AC adapter.
2. Auto power-off.
3. More than 200hr battery life.

 The most perfect testing ensurence:
1. Superior source stability to ensure the testing performance and repeatability.
2. Wide LCD display that provides the most completes testing information: wavelength, modulated signal, all kinds of conditions.
3. High quality and rugged design, ideal for field-testing.

Specification:
Power Meter
Model POL-580 POL-580A POL-580C
Detector InGaAs
Wavelength range 800~1700nm
Connector Moveable
Basic Calibration
wavelength(nm) 850, 1300,1310, 1550,1490 850, 1300,1310, 1550,1490,1625
Power range -70~+10dBm -50~+26dBm -70~+10dBm or-50~+26dBm
Uncertainty ±5%
Display units dBm/dB/w (nw,uw)
Resolution 0.01dB
Test mode Absolute mode or Reference mode
Auto wavelength-
recognition yes
Modulation (Hz) 270,1k,2k
Power life More than 200hr
Adapter FC/SC/ST
Sources
Model -83 -35 -345 -356 -8335
Wavelength (nm) 850/ 1300 1310/1550 1310/1490/1550 1310/1550/1625 850/1300/1310/1550
Spectrum width ≤5/5 nm
Output power model for 1310/1550nm 35 -35A -35C
Output power >-7/-7 dBm -3/-3 dBm 0/0 dBm
Output stability ±0.02/±0.02(1hr)
±0.10/±0.12(8hr)
Auto wavelength-
recognition yes
Modulation(Hz) 270,1k,2k
Connector Type FC/SC/ST as option
Power life >100hr
Red Sources(Visual Fault Locater)
model -V
wavelength 650nm
Other Information
Auto power off yes(default and can be shut down)
Power supply Li rechargeable battery、AA battery and AC adapter.220V
  • Place of Origin:
  • China
  • Brand:
  • Tsh
  • Unit Price:
  • USD 600
  • Price Terms:
  • FOB Guangzhou
  • Payment Terms:
  • T/T
  • Delivery Time:
  • 8 days
  • Min Order Quantity:
  • 1set
  • Standard / Certificates:
  • CE
  • Keywords:
  • loss tester, multi tester, optical loss tester
