Sm80nc

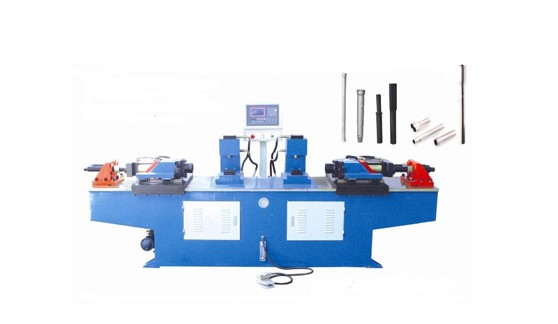

SM80NC hydraulic automatic pipe end forming machine, with the straight guide roller as the carrier, can run without abrasion, and the products have a good repeatability, which are fit for the treatment of the pipe end in iron pipes, furniture, automobile air conditioners and fuel oil pipes.

Max processing capability:Φ80mm×2mm
Max processing length :150mm
The distance of double head :250mm
Oil pressure :12Mpa
Working speed :130mm in 5-6/s
Size: 2900mm x 700mm x 1400mm
Weight: 1600kg

Remrak:
1.The max processing length can according to customer’s requirement
2.The distance of double head can according to the customer’s requirement
