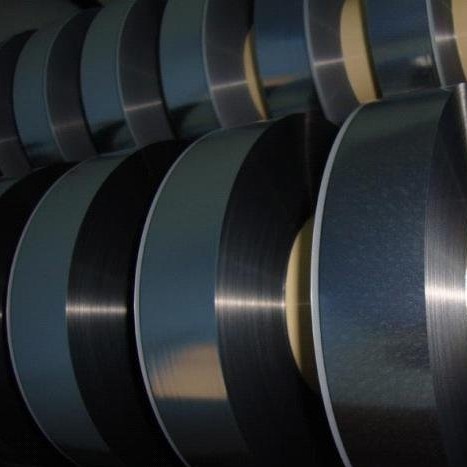

Ac Motor Capacitor Film

These metallized films are made by coating Al/Zn or Al onto BOPP film for capacitors in high vacuum condition
AC motor capacitor film
Specifications
1).Metallized BOPP Film ,AC motor capacitor film 4~12um, Zn/Al film,
2).thicknes(um):4 5 6 7 8 9 10 12
AC motor capacitor film 4~12um for capacitor
Capacitor Polypropylene film for type
M-PP/S PP:4,5,6,7,8,9,10,12micron
Rough film :6,8,9,10,11,12,13,14,15,18micron,RPP/RRPP
Detailed Description 1.Capacitor Polypropylene film for type M-PP/S-PP
M-PPMainly for metallized-film capacitor.
S-PPMainly for foil-film capacitor.
Thickness(um):3.6,4,5,6,7,8,9
Aluminum/Zinc film with reinforced edge and Al/Zn Metallized film:3.6,4,5,6,7,8,9,10,12
micron,all width,margin value:2.5,2.0,1.5mm
Detailed Description Item:AC motor capacitor film 4~12um
Description:
1.Type
Al/Zn Metallized film
Al Metallized film
Safety Anti-explosion Film
2.Application
Applied to capacitors for power system, refrigerators and air conditioners
Construction
3.Aluminum/Zinc film with reinforced edge
4. Specification
item unit nominal value
roll mm roll diameter inner diameter 76
outer diameter 150,300 (The specific diameters can be customized. )
thickness um 3.6,4,5,6,7,8,9,10,12
width mm 30,35,37.5,40,45,50,55,60,65,70,75,80,85,90,95,100,115,120,125,130,14 ,17.5,21, 26
