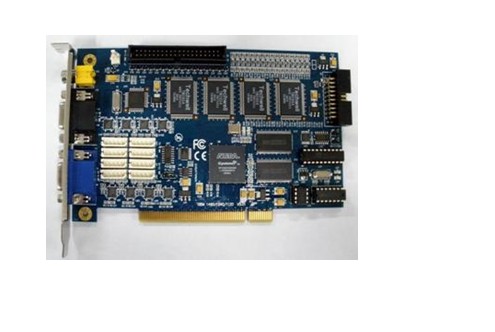

Gv1480

gv1480,16ch realtime dvr card,PCI card
Specifications
Input Type
DVI : DVI x 2 (one for 16 video, one for 16 audio)
D-Type: DB15 x 2 (for video) ; DB9 x 2 (extension card for audio)
Video Input(s) 16 Cams
Audio Input(s) 16 Channels
TV Output RCA Connector x 1
Recording Rate
At 320 X 240 Resolution 480 fps (NTSC), 400 fps (PAL)
Display Rate 480 fps (NTSC), 400 fps (PAL)
Video Resolution - NTSC/PAL Full D1, Half D1, CIF
Compression Format Geo MPEG4, Geo MPEG4 (ASP), Geo H264, Geo H264 V2
GV-NET Card Support Yes
GV-NET/IO Card Support Yes
GV-Hybrid DVR Card Support Yes
software V8.2
Dimensions
DVI: 165 (W) x 95 (H) mm
D-Type: 170 (W) x 95 (H) mm
D-Type PCI Express: 212 (W) x 99 (H) mm
Note:DVR1480 is currently not compatible with VIA series and ATI series chipset motherboards.
Minimum System Requirements
OS Supported
Windows 2000 / Windows XP / Windows Server 2003 / Windows Vista
CPU Pentium 4-3.0GHz with Hyper-threading or above
RAM 2 x 512 MB dual channel
HDD 250 GB or above (recommended)
VGA
ATI Radeon 9550 or above
NVIDIA 6200 or above
DirectX 9.0 or above
