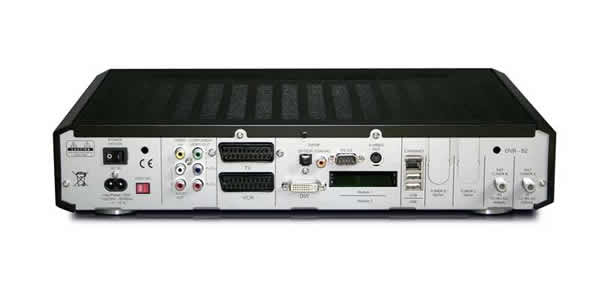

Dreambox 8000

Powerful receiver for digital TV and Radio programs. Main features are a 400 MHz processor the dreambox DM 8000 supports the Linux TV API ·MPEG-2 / h.264 decoding ·10/100MBit compatible Ethernet Interface ·DVD support ·Twin-DVB-S2 tuner ·optional DVB-C or DVB-T ·mixable, plug & play ·big size OLED display Technical data ·400 MHz MIPS Processor ·Enigma 2, Linux Operating System ·brilliant big-size OLED - Display ·MPEG-2 /H.264 Hardware decoding ·TWIN DVB-S2 tuner ·2 x Plug&Play tuner sockets optional for DVB-S, DVB-C or DVB-T ·4 x DVB Common-Interface Slot ·2 x Smartcard-Reader (Dreamcrypt CA) ·V.24/RS232 Interface ·Integrated Compact Flash and SD Card Slot ·10/100 MBit compatible Ethernet Interface ·3 x USB 2.0 (1 x front, 2 x back) ·S/PDIF Interface for digital bit stream out (AC-3) ·2 x Scart-interfaces ·S-Video ·YPrPb (Component) ·DVI ·Audio/Video cinch out ·128 MByte Flash, 256 MByte RAM ·2 x integrated SATA - support for internal HDD 3,5" in any capacity - support for SATA SlimLine DVD ·embedded WiFi (Mini-PCI device inl. antenna) ·unlimited channel lists for TV/Radio ·channel-change time < 1 second ·automatic service scan ·directly bouquet-lists ·EPG (electronic program guide) ·Videotext Decoder ·multiple LNB-Switching control (DiSEqC) ·OSD in many languages and skin-support DreamBox DM8000 technical data DBS-Tuner: Frequency Range 950...2150 MHz QPSK Demodulation EN 302 307 Signal Level - 65 dBm...- 25 dBm Signal-to-Noise Level 12 dB max. DBS-Tuner Input Connector F-Type female Input Impedance 75 Ohm AFC +/- 3 MHz Demodulation Shaped QPSK and 8PSK FEC Viterbi and Reed-Solomon Viterbirate 1/4, 1/3, 2/5, 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9 Roll-off Factor 35 % Common-Interface: Common-Interface Power Consumption max. 0,3A/5V Video decoder: Video Compression MPEG-2 / H.264 and MPEG-1 compatible Video Standard PAL G/ 25 Hz, NTSC Video Formats 4:3 / 16:9 Letterbox for 4:3 TV-Device Audio decoder: Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3 Audio Mode Dual (main/sub), Stereo Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz Output analog: Output Level L/R 0,5 Vss on 600 Ohm THD > 60 dB (1 kHz) Crosstalk < -65 dB Output digital: Output Level 0,5 Vss on 75 Ohm Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz S/PDIF-Output optical, coaxial (AC3) Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video VCR-Scart: FBAS Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function: Update of Firmware USB: USB 2.0 connector (3x) SATA Interface: for internal HDD Compact Flash - Reader SD Card - Reader LNB power and polarisation per tuner: LNB Current 500mA max.; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA LNB power off in Standy mode Count of active satellite position: DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control) Power consumption: < 30W (in operation, horizontal polarization / 400mA LNB current) < 25W (in operation, no LNB) < 1W (Deep-Standby-Mode) Input voltage: 230V / 50 Hz alternating current +/- 15% 110V / 60 Hz alternating current +/- 15% Physical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 430 mm x 280 mm x 90 mm Weight: 3,0 kg without HDD a. DVD
