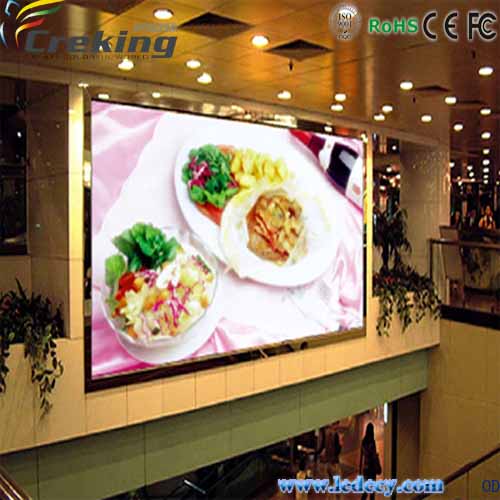

Hot Sell P6 Indoor Led Display Panel
Hot Sell P6 Indoor Led Display Panel, CCY-P6-I1Item Code / Model Number:
CCY-P6-I1
Hot Sell P6 Indoor Led Display Panel
1. Pixel pitch 6mm
2. Pixel composition 1R1PG1PB
3. LED encapsulation SMD3528
4. LED in pixels SMD 3 in 1
5. Module Resolution 32*16
6. Module Size 192*96mm
7. Cabinet Resolution 128*96
8. Cabinet Size 768*576mm
9. Pixel density 27778dots/m2
10. Best viewing distance 6m
11. Brightness ≥1400cd/m2
12. Driving method 1/8 scan, constant current
13. Viewing Angle (H/V): 120 degrees/70 degrees
14. Frame frequency ≥60Hz/s
15. Refresh rate ≥300Hz/s
16. Grey Scale/Display colors ≥16.7M(synchronized)
17. Power consumption 1400W/m2(Max.), 700W/m2(Average)
18. Working voltage 220±10% or 110 ± 10%
19. Weight of standard cabinet 23kg
20. Operating Temperature: -20Co—60Co
21. Operating Humidity: 10%—95%RH
22. Lifespan ≥ 100000 hours
23. MTBF ≥ 5000 hours
24. Malfunction dot rate Less than 0.0001
25. Whole display flatness: less than 1mm juncture
2. Pixel composition 1R1PG1PB
3. LED encapsulation SMD3528
4. LED in pixels SMD 3 in 1
5. Module Resolution 32*16
6. Module Size 192*96mm
7. Cabinet Resolution 128*96
8. Cabinet Size 768*576mm
9. Pixel density 27778dots/m2
10. Best viewing distance 6m
11. Brightness ≥1400cd/m2
12. Driving method 1/8 scan, constant current
13. Viewing Angle (H/V): 120 degrees/70 degrees
14. Frame frequency ≥60Hz/s
15. Refresh rate ≥300Hz/s
16. Grey Scale/Display colors ≥16.7M(synchronized)
17. Power consumption 1400W/m2(Max.), 700W/m2(Average)
18. Working voltage 220±10% or 110 ± 10%
19. Weight of standard cabinet 23kg
20. Operating Temperature: -20Co—60Co
21. Operating Humidity: 10%—95%RH
22. Lifespan ≥ 100000 hours
23. MTBF ≥ 5000 hours
24. Malfunction dot rate Less than 0.0001
25. Whole display flatness: less than 1mm juncture
- Place of Origin:
- China(mainland)
- Brand:
- Ccy
- Packing:
- Wooden Case or Flight Case(Optional)
- Payment Terms:
- L/C;T/T
- Payment Remarks:
- Western Union
- Delivery Time:
- 15 days
- Min Order Quantity:
- 1set
- Standard / Certificates:
- CE,ROHS,CCC
- Keywords:
- led display panel, p6 indoor led panel, hot sell led display
