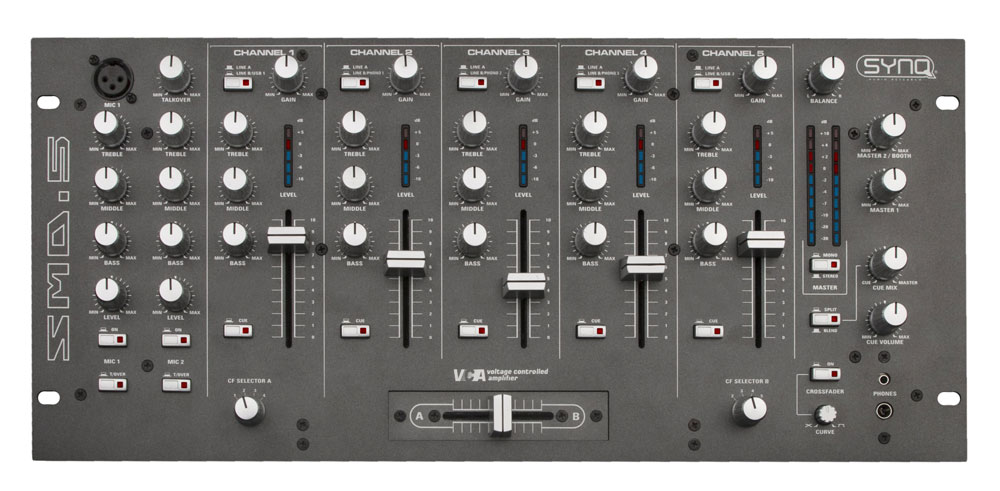

Synq Professional Multi Use 5ch Dj Mixer

A compact and robust 19”-mixer for the all-round DJs and hiring companies that don't need all those hi-tech effects but focus on reliability and perfect sound quality!


5 input channels equipped with smooth dual-rail 60mm DJ-faders:
2 channels with switchable USB(line)/line inputs, gain, 3-band EQ (+12/-26dB), PFL and input level meters
3 channels with switchable phono(line)/line inputs, gain, 3-band EQ (+12/-26dB), PFL and input level meters
2 extra DJ microphone inputs with gain, 3-band EQ and On-Air switch
DJ microphones can be individually assigned to automatic talkover with adjustable damping
2 USB-soundcards on channels 1+5, 1 can also be used for direct recording of your mix on PC.
Assignable, detachable, smooth 45mm dual-rail VCA crossfader with adjustable curve and on/off switch
Master1 section with balance control, stereo level meter and stereo/mono switch
Additional master2 (booth) output
PFL section with split/blend option and PFL/main mix control
Powerful headphones output with both 6.3mm and 3.5mm stereo jacks
Balanced subwoofer XLR-output with active crossover and adjustable crossover frequency/level
Master1 has both balanced XLR and unbalanced RCA/cinch outputs
Master2 and record output, both using unbalanced RCA/cinch connectors
Special cabinet design with recessed connector plane for space-saving rack mounting

Technical Information：

Power Supply: AC 230 V, 50Hz
Power consumption: 28W
Fuse: 20mm glass fuse 250V 1A slow
Frequency response: 20-22.000Hz (+/-3dB)
THD + noise: <0.1% @ 1kHz, 0dB
S/N Ratio (IHF-A): >80dB @ 1kHz.
Micro inputs: 1.5mV @ 10kΩ
Line/CD inputs: 150mV @ 22kΩ
Phono inputs: 3mV @ 47kΩ
Record output: 775mV @ 600Ω
Master output: 1.5V @ 4k7Ω unbal.
Master output: 850mV @ 600Ω bal.
Tone controls CH1 to CH5: +12dB / -26dB @ 10kHz / 1,3kHz / 50Hz
Tone controls DJ MIC: +/-12dB @ 10kHz / 2,5kHz / 70Hz
Headphone: 180mW@75Ω
Dimensions: 483(W) x 220(H) x 104(D)mm (19” / 5U)
Mounting depth = 85mm
Weight: 5,2kg
