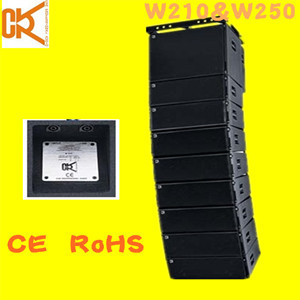

10''professional Line Array Speaker W-210a/w-250a

1.line array speaker
2.Birch plywood,Water-proof
3.CE,ROHS certifica
4.neodymium-magnet ,reliable
5.good after sale service
DESCRIPTION and APPLICATION
W-210A is a line array speaker which is made of two 10'' neodymium woofers, two 2'' titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. It is a zero interfere line array with multi- speaker combined to produce accurate directivity and maximum dynamic impact. Wherever low frequency extension is required, a W-210A will integrate seamlessly with W-250A line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-210A is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
DESCRIPTION and APPLICATION
W-250A is dedicated high performance sub-bass system designed to augment the low frequency output of the W-210A, W-250A is a sub-bass enclosure which must be flown with W-210A. So its physical dimensions are identical to the W-210A and it is equipped with the same proprietary rigging system. It features with twin 15” neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion
Model W-210A/W-250A

Type Line array system
Line array sub-bass system(W-250A)

Frequency Response 55Hz-20KHz±3dB
40Hz-150Hz±3dB(W-250A)
Directivity index(Dl) 12(±2)1.2KHz-16KHz
Power handing LF 500W(RMS)1000W(PEAK)
HF 160W(RMS)320W(PEAK)

1200W(RMS)2400W(PEAK)(W-250A)
Sensitivity LF 99dB(1W@1M)
HF 108dB(1W@1M)
112dB(1W@1M)(W-250A)
MaxS.P.L LF 127dB(PEAK/1M)
HF 127dB(PEAK/1M)
143dB(PEAK/1M)(W-250A)
LF section 2×10"(260mm) neodymium woofer
75mm(3in)coil
Components 2×15"(380mm) neodymium woofers
100mm(4in)coil(W-250A)
Nominal impedance 16 ohm
4 ohm(W-250A)
HF section 2×2"neodymium compression driver
with 51mm titanium diaphragm
Nominal impedance 16 ohm
Output section 2-channel
Dispersion pattern 110°H×9°V
Finish Water-proof,wear-resistant textured black paint
Array design Arrays of less than 3×W-210A will
provide poor dispersion control and
are neither recommended nor supported
Speaker cables LF 1(+)1(-) HF 2(+)2(-)
1(+)1(-) (W-250A)
Rigging system Please refer to the W-210A user
manual before any operation
Input connectors 2×NL4MP speakon
Recommend crossover LF 45Hz-1200Hz
HF 1200Hz-20KHz
35Hz-120Hz(W-250A)
Dimensions 855×293×600mm(W×H×D)
855×610×820mm(W×H×D)(W-250A)
Package dimensions 925×360×670mm/0.22cbm
925×680×890mm/0.56cbm(W-250A)
Enclosure Birch plywood
Net weight 42kg (W-210A)/ 81kg (W-250A)
Gross weight 45kg (W-210A)/ 84kg (W-250A)
