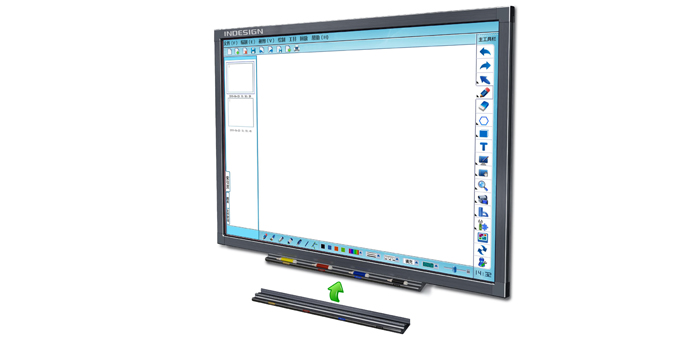

Interactive Whiteboard

Infrared interactive whiteboard is a large interactive display that connects to a computer and projector. A projector projects the computer's desktop onto the board's surface where users control the computer using a pen, finger or other device. The board is typically mounted to a wall or floor stand. About the IR technology for the IWB, when pressed to the whiteboard surface, the finger or marker sees the infrared light. Software then manipulates the information to triangulate the location of the marker or stylus. This technology allows whiteboards to be made of any material; with this system no dry-erase marker or stylus is needed. The IR IWB is used in a variety of settings, including classrooms at all levels of education, in corporate board rooms and work groups, in training rooms for professional sports coaching, in broadcasting studios and more.

1. Specifications
Detection Form Infrared Rays
Resolution (Non-physical) 4096*4096
Interface Type USB 2.0, Wireless 2.4G RF (Optional)
Cable Length 6000mm
Working Environment Working Under Sunlight Directly
Connector Type USB1.1A, Wireless 2.4G RF (Optional)
Scan Periods 45-70Hz
How to Supply It From USB PORT of PC
Power Less than 90ma at 5V
Temperature Range Operating -30℃ - 80℃ (Temperature Slope Less than 25C/Hr)
Storage -30 ℃- 85℃ (Temperature Slope Less than 25C/Hr)
Humidity Operating 0%-85%, Noncondensing
Storage 0%-95%, Noncondensing
ESD Capability Contact Discharge Voltage is 4KV, Air Discharge Voltage is 8KV
Warranty 3 years Limited Warranty
Device Driver Version # DL-USB (2.0)
Scanning Form Auto Start, Always Scanning
Responding Speed First Point 25ms, Consecutive Point 8ms
Easy WriteSoftware Optional
Firmware Optional
