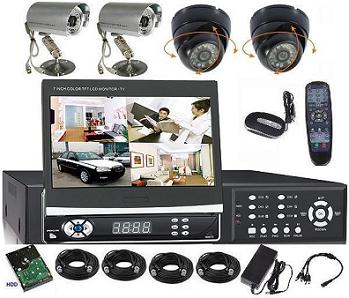

uvistar brand cctv system
1. DJ2104 DVR Introduction
MJPEG 4-CH Stand Alone DVR with 7" TFT Monitor
Advanced RTOS,Motion JPEG compression
Support CIF,Half-D1,Real time recording
4CH Video Input & 4CH Audio Input
USB to upgrade software,PS/2 Mouse control
PTZ and network function;
Perfect alarm and operation log are convenient for analyse and detection ;
Watch-dog built-in;
Multi- language versions are selectable ;
Built in 7 inch hidden LCD monitor,convenient for using;
Applied in small surveillance area,such as House,Small Super Market, Gas Station, Villa,etc
Model 4CH
OS Embedded Linux
Compression MJPEG
Video I/O NTSC:4CH BNC Input/1CH BNC output,1CH S-video output
PAL:4CH BNC Input/1CH BNC output,1CH S-video output
Audio I/O 4CH BNC Input/ 1CH BNC Output
Displaying Speed NTSC:120 FPS(4 x 30 FPS )
PAL:100 FPS(4 x 25 FPS )
Recording Speed NTSC:30 FPS 4 x 30=120FPS
PAL:25 FPS 4 x 25=100FPS
Recording Mode Manual, Scheduling,Alarm, Motion &Detection;
Image Quality High, Middle, Low are selectable
Recording Resolution 704 x 240,352 x 240(NTSC) 704 x 288, 352 x 288(PAL)
Playing Mode 1CH or 4 CH (Dualplex)
Search Mode By Time/ Event /Channel
HDD > 200G,ATA-100(Without HDD)
Alarm I/O 4CH Input/1CH Output
Network IE/PPPoE/DDNS
Remote Control YES
Mouse Control PS/2
USB Backup USB2.0
PTZ Control PELCO-D,PELCO-P,B01,SAMSUNG
Language Simplified Chinese,Old Chinese, English
Monitor 7 inch hidden LCD monitor
SATA Backup YES
Software Upgrade USB
1. DJ2104 DVR Introduction
MJPEG 4-CH Stand Alone DVR with 7" TFT Monitor
Advanced RTOS,Motion JPEG compression
Support CIF,Half-D1,Real time recording
4CH Video Input & 4CH Audio Input
USB to upgrade software,PS/2 Mouse control
PTZ and network function;
Perfect alarm and operation log are convenient for analyse and detection ;
Watch-dog built-in;
Multi- language versions are selectable ;
Built in 7 inch hidden LCD monitor,convenient for using;
Applied in small surveillance area,such as House,Small Super Market, Gas Station, Villa,etc
Model 4CH
OS Embedded Linux
Compression MJPEG
Video I/O NTSC:4CH BNC Input/1CH BNC output,1CH S-video output
PAL:4CH BNC Input/1CH BNC output,1CH S-video output
Audio I/O 4CH BNC Input/ 1CH BNC Output
Displaying Speed NTSC:120 FPS(4 x 30 FPS )
PAL:100 FPS(4 x 25 FPS )
Recording Speed NTSC:30 FPS 4 x 30=120FPS
PAL:25 FPS 4 x 25=100FPS
Recording Mode Manual, Scheduling,Alarm, Motion &Detection;
Image Quality High, Middle, Low are selectable
Recording Resolution 704 x 240,352 x 240(NTSC) 704 x 288, 352 x 288(PAL)
Playing Mode 1CH or 4 CH (Dualplex)
Search Mode By Time/ Event /Channel
HDD > 200G,ATA-100(Without HDD)
Alarm I/O 4CH Input/1CH Output
Network IE/PPPoE/DDNS
Remote Control YES
Mouse Control PS/2
USB Backup USB2.0
PTZ Control PELCO-D,PELCO-P,B01,SAMSUNG
Language Simplified Chinese,Old Chinese, English
Monitor 7 inch hidden LCD monitor
SATA Backup YES
Software Upgrade USB
- Place of Origin:
- China
- Brand:
- Uvistar
- Unit Price:
- USD 288
- Port:
- FOB Shenzhen
- Packing:
- color package
- Payment Terms:
- L/C;D/A;T/T;M/T;D/D;Cash
- Delivery Time:
- 3 to 5
- Min Order Quantity:
- 5 set
- Standard / Certificates:
- CE,FCC,ROHS
