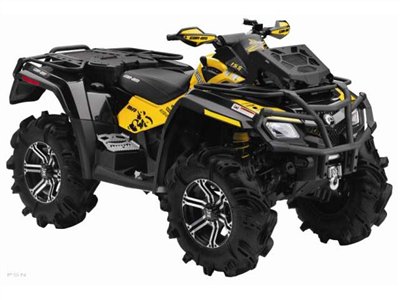

2011 Can-am Outlander 800r Efi X Mr

GENERAL INFORMATION
Manufacturer Can-Am
Model Year 2011
Model Outlander 800R EFI X mr
DIMENSIONS
Length 86 in. (2,184 mm)
Height 45 in. (1,143 mm)
Width 46 in. (1,168 mm)
Weight 669 lbs. (303 kg)
Ground Clearance 12 in. (305 mm)
Seat Height 34.5 in. (877 mm)
ENGINE
Engine V-twin, SOHC, 8-valve (4-valve / cylinder)
Displacement 799.9 cc
Bore x Stroke 91 x 62 mm
Carburetion EFI, 46 mm throttle body, 2 Siemens VDO injectors
Fuel Capacity 4.3 gal. (16.3 l)
Starting Electric
Cooling Liquid
DRIVETRAIN
Transmission CVT, sub-transmission with high, low, park, neutral & reverse, standard engine braking
Drive System 4x4
Drive Selectable 2W/4W shaft driven with Visco-Lok front differential
BRAKES/WHEELS/TIRES
Brakes Front: 2 inboard hydraulic discs
Rear: 1 inboard hydraulic disc
Wheels 14 in. (35.6 cm) ITP cast-aluminum
Tires 30 in. (76.2 cm) Gorilla Axle Silverback
OPERATIONAL
Suspension Front and rear Air Control Suspension (ACS)
Frame SST
Load Capacity Front Rack: 100 lbs. (45 kg)
Rear Rack: 200 lbs. (90 kg)
Rear Storage: 5.3 gal. (20 l)
Towing Capacity 1,300 lbs. (590 kg)
OTHER
Colors Two-tone Yellow / Black with X package graphics
