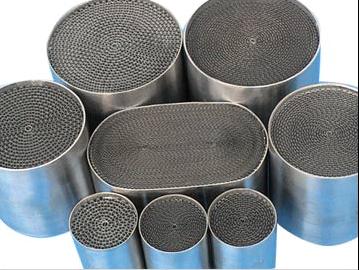

Metal Substrate Catalytic Converter
Metal Substrate Catalytic ConverterItem Code / Model Number:

Features:
Higher operation temperature,long service life,used for catalytic, converter carrier material for automobile exhaust emission.
Specification:
Catalytic / Cellular Carrier Material
Product Name : Fe-Cr-Al Catalytic Carrier Strip
Brand Name : Wisdom
Model Number : 0Cr21Al6
Shape : Ultra-thin strip
Thickness(mm) : 0.04-0.1
Width(mm) : 10-250
Main Chemical composition:Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest
Max Service temperature:1250 C
Thermal conductivity:63.2
Resistivity at 20 C:1.42
Density(g/cm3):7.16
Coefficient of line expansion:14.7
Melting point(approx.):1500
Tensile strength:630-780
Elongation at rupture:>12
Variation of area:65-75
Repeat bending frequency:>5
Hardness:200-260
Higher operation temperature,long service life,used for catalytic, converter carrier material for automobile exhaust emission.
Specification:
Catalytic / Cellular Carrier Material
Product Name : Fe-Cr-Al Catalytic Carrier Strip
Brand Name : Wisdom
Model Number : 0Cr21Al6
Shape : Ultra-thin strip
Thickness(mm) : 0.04-0.1
Width(mm) : 10-250
Main Chemical composition:Cr:19.0-22.0 , Al:5.0-7.0 , Fe:rest
Max Service temperature:1250 C
Thermal conductivity:63.2
Resistivity at 20 C:1.42
Density(g/cm3):7.16
Coefficient of line expansion:14.7
Melting point(approx.):1500
Tensile strength:630-780
Elongation at rupture:>12
Variation of area:65-75
Repeat bending frequency:>5
Hardness:200-260
- Place of Origin:
- China
- Brand:
- Wisdom
- Unit Price:
- USD 0-30
- Price Terms:
- FOB Shanghai
- Packing:
- spool, coil, carton, wooden case
- Payment Terms:
- L/C;D/A;T/T;D/D;D/P
- Delivery Time:
- 10-30 days
- Min Order Quantity:
- 20 kilograms
- Keywords:
- metal honeycomb, metal substrate, catalytic converter
