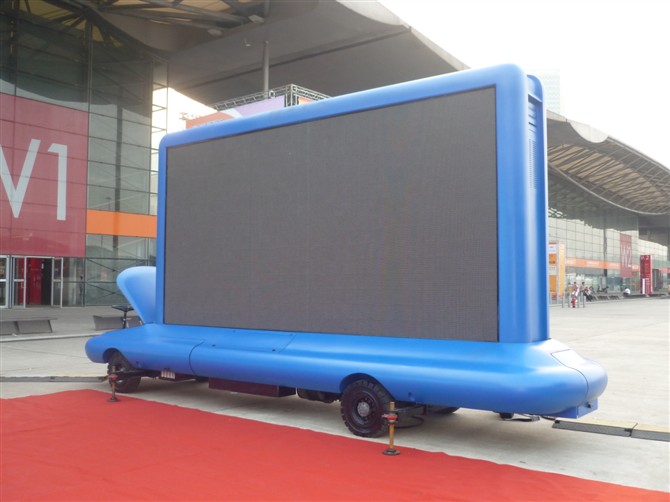

P10 Outdoor Full Color Led Trcuk Display
P10 Outdoor Full Color Led Trcuk DisplayItem Code / Model Number:
P10 Outdoor Full Color Led Trcuk Display
P10 Outdoor Full Color LED Display Technical & Application Guide
- LED Technical Parameter:
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B
3 Pixel Density 10000dot/㎡
4 Encapsulation DIP 346.
5 LED Chips Blue / Green: Silan LED Chip & Red : Taiwan OPTO LED chip.
6 LED Wave length R: 622 nm / G: 525nm / B: 465 nm
7 LED Brightness R: ≥800mcd / G: ≥1800mcd / B: ≥350mcd .
- Module
1 Module Dimention 160mm×160mm
2 Module Pixel: 16x16= 256 ( dot )
- Cabinet
1 Consumption: 500W/ m2
2 Size / Weight: 960×960mm.
3 Cabinet Material can prevent static and the disturbance from electromagnetism.
- Display
1 Final Screen Size ( L ) x ( H ) = m2
2 Total Pixel dots.
3 Brightness ≥6500 cd/ m2
4 Brightness Adjustment Multilever automatic brightness adjustment or by hand based on the environment.
- Electricity Parameter
1 View Angle Horizontal : 120°±5°/ Vertical : 120°±5°
2 Viewing distance 10-100 m
3 Driving Mode: Constant current drive, scan method: 1/4 scan
4 Driving Chip Taiwan MBI, 5026
5 Frame rate 60Hz
6 Refresh rate ≥600Hz
7 Control Method PC control, display synchronously with PC monitor.
8 Display Port VGA/VIDEO/S- VIDEO/COMPOSITE
9 Software Port Standard PC Network port, compatible with windows2003/XP/NT, UNIX, NOVELL and so on.
10 Screen Lifetime >10,0000hours
11 Blind spot rate <1/10000
12 Protection rank ≥IP65
13 Voltage AC220±10% , 50Hz±5%
14 Environment Requirement Operating ambient temperature: -20℃~+60℃
Operating ambient humidity: 10%~95%
15 Grey Rank 4096
16 Refresh Rate 350 - 400
- LED Technical Parameter:
1 Pixel Pitch 10mm
2 Pixel Configuration 1R1G1B
3 Pixel Density 10000dot/㎡
4 Encapsulation DIP 346.
5 LED Chips Blue / Green: Silan LED Chip & Red : Taiwan OPTO LED chip.
6 LED Wave length R: 622 nm / G: 525nm / B: 465 nm
7 LED Brightness R: ≥800mcd / G: ≥1800mcd / B: ≥350mcd .
- Module
1 Module Dimention 160mm×160mm
2 Module Pixel: 16x16= 256 ( dot )
- Cabinet
1 Consumption: 500W/ m2
2 Size / Weight: 960×960mm.
3 Cabinet Material can prevent static and the disturbance from electromagnetism.
- Display
1 Final Screen Size ( L ) x ( H ) = m2
2 Total Pixel dots.
3 Brightness ≥6500 cd/ m2
4 Brightness Adjustment Multilever automatic brightness adjustment or by hand based on the environment.
- Electricity Parameter
1 View Angle Horizontal : 120°±5°/ Vertical : 120°±5°
2 Viewing distance 10-100 m
3 Driving Mode: Constant current drive, scan method: 1/4 scan
4 Driving Chip Taiwan MBI, 5026
5 Frame rate 60Hz
6 Refresh rate ≥600Hz
7 Control Method PC control, display synchronously with PC monitor.
8 Display Port VGA/VIDEO/S- VIDEO/COMPOSITE
9 Software Port Standard PC Network port, compatible with windows2003/XP/NT, UNIX, NOVELL and so on.
10 Screen Lifetime >10,0000hours
11 Blind spot rate <1/10000
12 Protection rank ≥IP65
13 Voltage AC220±10% , 50Hz±5%
14 Environment Requirement Operating ambient temperature: -20℃~+60℃
Operating ambient humidity: 10%~95%
15 Grey Rank 4096
16 Refresh Rate 350 - 400
- Place of Origin:
- China
- Brand:
- Ledway
- Unit Price:
- USD 1000-1600
- Price Terms:
- FOB Shenzhen
- Packing:
- inner: foams outter: wooden case
- Payment Terms:
- T/T
- Delivery Time:
- 15-25 days
- Min Order Quantity:
- 1 square meter
- Standard / Certificates:
- CE ,RoHS
