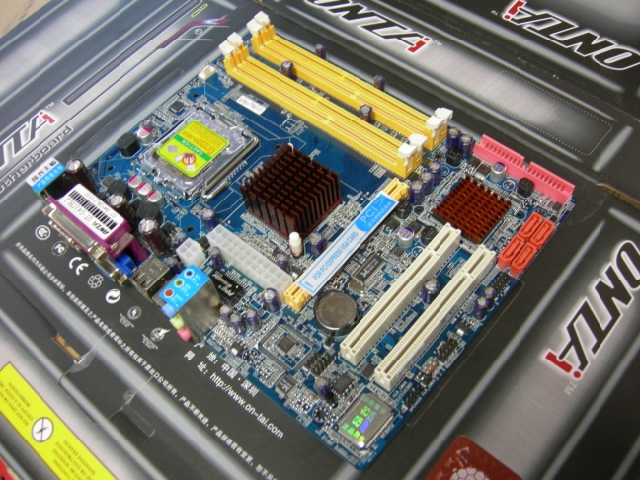

Esonic Motherboard G41cbl , 2xddr2 & 2xddr3

ESONIC MOTHERBOARD G41BL , 2XDDR2 & 2xDDR3,FSB1333MHZ

ESONIC MOTHERBOARD G41CBL , 2XDDR2 & 2xDDR3
CPU
Supports Intel® Core 2 Quad/Core 2 Duo based processors in LGA775 package.
Supports Intel® Yorkfield, Wolfdale in the LGA775 package.
Supports Intel® next generation 45nm multi-core processors
Supports FSB 1333/1066/800 MHz.
Supports VRD 11.1 standard.
Supports FMB 05a@95W


Chipset
Intel® G41 Chipset
- Supports FSB 800/1066/1333 MHz.
- Supports DirectX10.

Intel® ICH7 Chipset
- Hi-Speed USB (USB2.0) controller, 480Mb/sec, up to 8 ports.
- 2 SATAII ports with transfer rate up to 3Gb/s.
- PCI Master v2.3, I/O APIC.
- ACPI 2.0 compliant.


Main Memory
Supports 2X DDR2 667/800 SDRAM, AND 2XDDR3 667/800 SDRAM ,8GB Max



Slots
One PCI Express x16 slot (PCI Express Bus SPEC V1.0 compliant).
Two 32-bit v2.3 master PCI bus slots.
- Support 3.3v/5v PCI bus interface.



On-Board IDE/SATA

One Ultra DMA 66/100 IDE controller integrated in Intel® ICH7.
- Supports PIO, Bus Master operation modes.
- Can connect up to two Ultra ATA drives.

SATAII controller integrated in ICH7 chipset
- Up to 3Gb/s transfer speed.
- Supports four SATAII ports by ICH7



Audio
Chipset integrated by Realtek® ALC
- Flexible 5.1-channel audio with jack sensing
- Compliant with Azalia 1.0 Spec
- Meet Microsoft Vista Premium spec



LAN
Supports PCI Express LAN 10/100/1000 Fast Ethernet by Realtek 8111DL


Internal I/O Connectors
- ATX 24-Pin power connector
- 4-pin ATX 12V power connector
- CPU x1/ System x2 FAN connectors
- CD-in connector
- Front panel audio connector
- Front panel connector
- 2 x USB 2.0 connectors
- 1 x Floppy disk drive connector
- 2 x Serial ATAII connectors
- 1 x ATA100 connector
- Clear CMOS Jumper



Back Panel I/O Ports
- 1 x PS/2 keyboard
- 1 x PS/2 mouse
- 1 x Parallel port
- 1 x Serial port (COM 1)


- 1 x Graphics Card port
- 1 x 3 in 1 audio jack
- 2 x USB 2.0 ports
- 1 x RJ45 LAN jack
