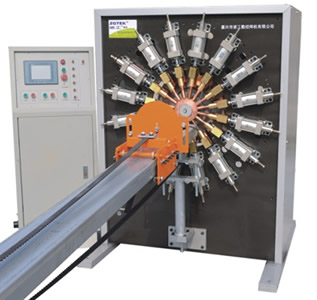

Cage Welding Machine

Cage welding machine



Model Wire qty Ring space Cage diameter(mm) Control unit

DLN-16-5 8,10,12,14,16 No restriction 100-160 KD-DL08D



DLN-24-5 8,10,12,14,16,18,20,22,24 No restriction 100-200 KD-DL08D





General Specification

Input voltage: 380V (2 phase)

• Power frequency: 50/60Hz

• Cooling method: natural cooling

• Air pressure: 0.6-0.8 MPa

• Insulation grade: F

• Power capacity: 80 KVA

• Working load: 20 KVA



Features



1. Rails (7500mm) and material shelf (7500mm) equipped and connected to the welding unit.

The front end of the rail is adjustment-free. Good linearity can be
achieved for wire cages.

2. Equipped with auto feeding unit, no restrictions on ring space.

3. Positioning mould manufactured with wire-cutting process, it features high accuracy, good

insulation and long life.

4. Four air tanks, short air route inside the machine ensures quick response of the cylinder.

5. 25mm front plate resulted from one-time machining, firmly secure that the welding cylinders

are on the same plane and perpendicular to the axes, thus the linearity of the cage can be

ensured.

6. Air valves (Airtac) together with stroke-adjustable cylinders increase welding speed,

pre-pressing only takes 0.08s.

7. Controlled by micro-computing unit.

8. Time-sharing power-on transformer reduces the burden on local electricity grid.

:
