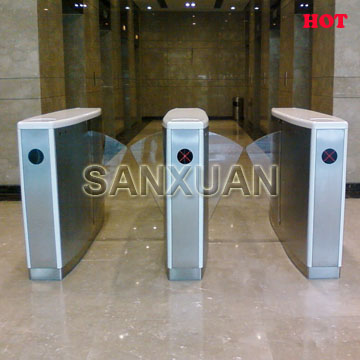

Flap Barrier / Optical Turnstile / Speed Lane Swg-310a

ABS Material, Polishing Suface , Two Directions Controlled

Working principle:
The user can be authorized via access control system or push button, Confirmation of authorization is provided through a LED display in the top cover of the unit and the door wings open automatically, immediately the user passes the passage, the door wings quickly re-close to prevent tailing-proof, an anti-pinch function will protected the user to prevent pinch.

Technology specifications:
Framework: 304 Grade Stainless Steel
Materials of top cover: ABS
Dimensions: 1470*300*940mm
Material of wing gates: Organic glass
Width of wing gates: 250mm (default)
Width of the lane:550mm (Standard)
Net weight: single wing unit: 110kg; double wings unit: 140kg
Interface: RS485
Power supply: 200~240V AC / 100~120VAC 50/60Hz
Main board voltage: 24V
Transit speed: 30-40persons per minute
Working Environment: Indoor/Outdoor (with a tent over)
Temperature: -20 celsius to 70 celsius
Humidity: ≤90%
