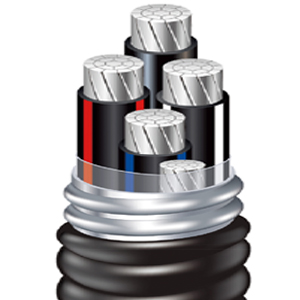

Xlpe Insulated Power Cable

Quick Details
Place of Origin: Chizhou, China (Mainland) Brand Name: Runjia Model Number: YJV, YJY, YJV22, YJV23, YJV32, YJLV, YJLY, YJLV22, YJLV23, YJLV32
Insulation Material: XLPE Application: Power Station
Conductor Material: Copper, Aluminum Jacket: PVC Standard: IEC60502-2009

Electric Cables:
The product is suitable for using in power distribution networks or fixed installations for industrial equipments with rated voltage up to and including 35kV.
Cu/Al Conductor XLPE Insulated PVC Sheathed Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1kv -26/35kV in transmission & transformation line & for water-proofing purpose.
2. Standards: IEC60502-2009
3. Product features:
1) The ambient temperature under installation shall not below 0℃.
2) Max. continuous normal operating Temperature: 90oC.
3) Max. Permissible temperature at short-circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
