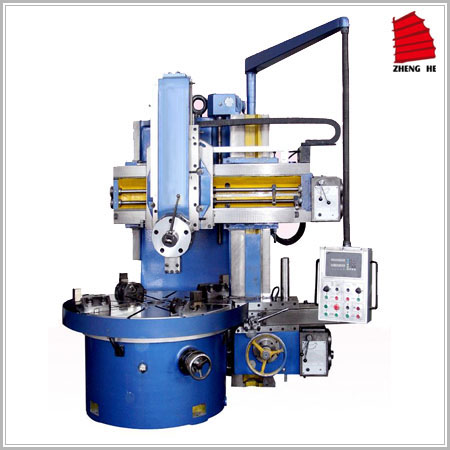

C5112 Single-column Vertical Lathe

1 This series of vertical lathe is suitable for mechanical processing
in many industries,can be used for machining processing such as rough and finishing machining to inside and outside cylindrical faces,inside and outside circular conical faces,grooving and notch cutting.
2 The worktable of the vertical lathe uses both dynamic and static pressure guide rail,the radial direction of the main shaft use NN30 double column cylindrical roller bearing,so the worktable has big load,high rotation accuracy.
3 The slide part all adopt pasted-imported TSF slideway soft belt with low friction coefficient,and feeding no creeping.
4 The vertical lathe's rail head is equipped with pentagon knife set(can choose square ram),the side knife set equipped with square knife table,both the two knife sets use hydraulically balance.
5 Both the horizontal and vertical movement for the rail head use sliding screw transmit.
6 We can optional equip digital display etc accessories according to
users requirement,and logical control for the main transmission can choose program PC controlled.
7 All the electricity parts of lathes use Schneider or Simens,good reliability.
8 This kind of vertical lathe has good appearance,agreeableness and convenient for operate and repair.
