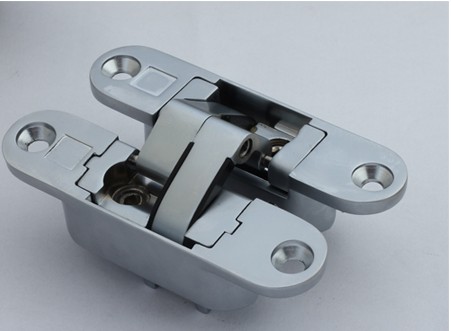

Concealed Hinge
Concealed Hinge, ZP600Item Code / Model Number:
ZP600
Concealed Hinge
• 95x23.3x29.6mmconcealed hinge
• Fully adjustable mechanism allows 3
way fine-tuning without removing the unit
from the door
• Radiused forends for easier
door/frame preparation
• 180o opening where frame detail allows
• Handed left and right (see above)
• Suitable for doors up to 1000mmwide and
2700mm high
• Maximum adjusted door weight 60kg
(on 600mm wide leaf)
• Successfully tested to 200,000 cycles
• Wear resistant discs avoid need for
lubricating
• Minimum door thickness 30mm
• Zamak
• Available in Polished Nickel, Satin Chrome,
Satin Nickel or Polished Brass
Payment Terms: Telegraphic Transfer (T/T), Western union.30% to be paid as deposit before production, balance payment before shipping
Minimum Order: 1000 Pieces
Packing:Carton
FOB Port: Huangpu
Delivery time:Within 30days after received deposit
• Fully adjustable mechanism allows 3
way fine-tuning without removing the unit
from the door
• Radiused forends for easier
door/frame preparation
• 180o opening where frame detail allows
• Handed left and right (see above)
• Suitable for doors up to 1000mmwide and
2700mm high
• Maximum adjusted door weight 60kg
(on 600mm wide leaf)
• Successfully tested to 200,000 cycles
• Wear resistant discs avoid need for
lubricating
• Minimum door thickness 30mm
• Zamak
• Available in Polished Nickel, Satin Chrome,
Satin Nickel or Polished Brass
Payment Terms: Telegraphic Transfer (T/T), Western union.30% to be paid as deposit before production, balance payment before shipping
Minimum Order: 1000 Pieces
Packing:Carton
FOB Port: Huangpu
Delivery time:Within 30days after received deposit
- Place of Origin:
- China
- Brand:
- Zp
- Unit Price:
- USD 6
- Price Terms:
- FOB Huangpu
- Packing:
- carton
- Payment Terms:
- T/T
- Delivery Time:
- 30 days after receive the deposit days
- Min Order Quantity:
- 100 pcs
- Keywords:
- hinge, concealed hinge, adjustable hinge
