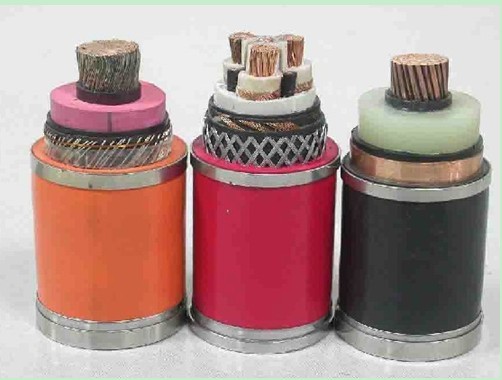

Sell Xlpe Insulated High Voltage Power Cable
Sell Xlpe Insulated High Voltage Power CableContinuous Selling Item
Sell Xlpe Insulated High Voltage Power Cable
Specifications3.6/6kv,6/6kV,6/10kV,8.7/10kV, 8.7/15kV,12/20kv, 21/35kV, 26/35kV.GB/T12706-2002 standard(The same as IEC60502).power cable
Electric Cables:
CU Conductor PVC Insulated PVC Sheathed Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose .
2. Standards: 60502IEC ISO9001
3. Product features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
Electric Cables:
CU Conductor PVC Insulated PVC Sheathed Power Cable
1. The applications: Rated voltage (U0/U) 0.6/1kv 8.7/15KV 26/35kV in transmission & transformation line & for water-proofing purpose .
2. Standards: 60502IEC ISO9001
3. Product features:
1) No necessary to heat up in advance while installing above 0oC.
2) Max. continuous normal operating Temperature: 90oC (PVC Sheathed cable).
3) Max. Permissible temperature at short circuit (5s. at longest): 250oC.
4) Permissible bending radius:
Single core: ≥20(d+D)±5%.
Three-core:≥15(d+D)±5%(D is the actual overall diameter of cable, and d is the actual overall diameter of conductor).
- Place of Origin:
- China
- Brand:
- Ri Hui Brand
- Unit Price:
- USD Negotiate
- Port:
- FOB Qingdao
- Packing:
- international wooden drums or according to your requirement.
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- In one month or as the quantity you requ
- Min Order Quantity:
- 500 Meter/Meters
- Standard / Certificates:
- ISO,CCC,CE
