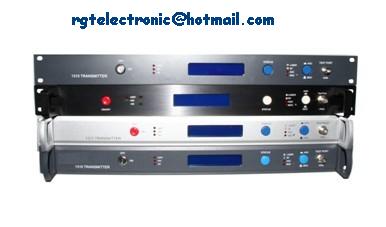

Cable Tv(catv) Optical Transmitter

Fiber Connector FC/APC or SC/APC Return Loss dB ≥60 RF Performance Bandwidth MHz 45～750/862 Input Level dBµV 80(typical) 59 PAL－D input channels AGC Range(dB) dBµV -5 — +5 MGC Range(dB) dBµV 10 Flatness dB ±0.75 Input Impedance Ω 75 Return Loss dB ≥16 Connector Type F RF Monitoring Port dB -20±1.5 Compare with RF input Optical Link Performance C/CTB dB ≥52 See note C/CSO dB ≥63 C/CTB dB ≥67 Environmental Requirements Work Temp ℃ 0 ～50 Storage Temp ℃ -25 ～65 Humidity 10%～90%，non-condensing Others User Interface Front panel LCD display working status and alarm Power +24V +5V -5V Power Consumption W 30 Size mm 483×385×44(19"×15"×1.75") Weight Kg 6.5
