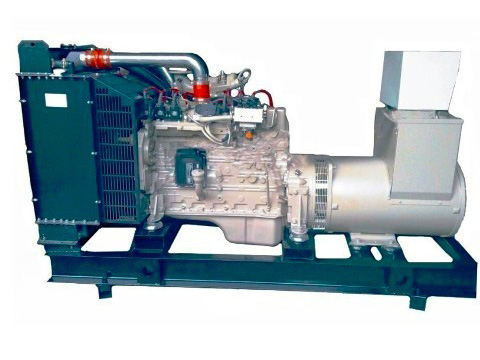

Cummins Scg25 Natural Gas Generator Set

CUMMINS SCG25 Natural Gas Generator Set

Rated Output(KW) 25
Standby Output(KW) 28
Voltage(V) 400
Current(A) 45
Size(mm) 1800*780*1420
Approximate weight(KG) 850
Emission levels (Nox) Euro II emission(mg/m³)
Naturally aspirated engine intake air temperature Not more than 45 Deg C
Air temperature before entering the air to air intercooler 82-87(Deg C)
Air temperature after entering the air to air intercooler 35-42(Deg C)
Rated Power @ 0.8 power factor (w / pump s and w / o fan) 25KW (continuous operation)
Total energy input (100% load) 69(KW)
Electrical efficiency 36.20%
Thermal efficiency 87.90%
Control panel(Deepsea or others) Synchronizing Control, Multilingual Mode Digital Control, Diagnostic Function, Direct Text Indicate of Faults, MOBUS Communication Protocol, Compatible Communication, Exchange Telecommunications, Wired Control Data Output, Automatic or manual start
