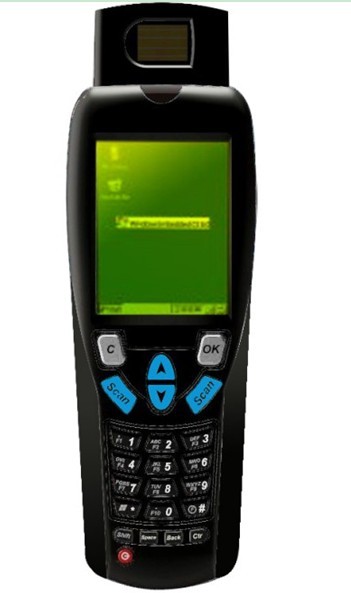

RFID handheld reader

• Operation System: Window CE 6.0 or Linux
• MPU: ARM9|ARM11,Master frequency: 840MHz
• Memory: 128M(Extend 1G),SD card support
• Screen: 2.8inch(transflective)TFT QVGA
• Keypress: 25 keypress,waterproof; power key, numeric key and function key
• Security : 2 PSAM
• GPS: Available
• Fingerprinting : Available
• RFIDreader:ISO14443/ISO15693/UHF (ISO18000-6C)
• Card support : 13.56MHZ I.code2,Tag-IT, Mifare One S50, ISO18000-6C
• Barcode: 1D,2D barcode
• Reading distance: HF: 3~10cm UHF: 50cm-200cm
• Interface: USB
• Wireless: GPRS/Wifi/Bluetooth/CDMA/EVDO(option)
• Size(mm): 185*70*35mm
• Weight(g): 280g
• Work Temp: -5°C-50°C
• Storage Temp: -20°C-70°C
• Humidity:b30%-85%RH
• Industrial design: IP54
• Anti-hit performance: 1.5m to the concrete ground
• Printer: Attached with Bluetooth printer

Application

• assets management
• logistics supply Chain
• RFID terminal
• POS terminal
