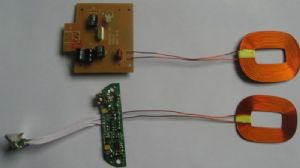

Wireless Charger
Wireless ChargerItem Code / Model Number:
Wireless Charger
Parameters of wireless chargers:
a.input: USB or 5V,12V adaptor
b.fast charging current: 250mA (180mA-320mA)
c. trickle charing current:20mA
d. Transmission distance:5mm (3mm-10mm)
e. full charge detection method 1(-*Ｖ): 10mV(0mV-10mV)
f. full charge detection method 2(Max temp): 60°C(55°C-60°C)
g:full charge detection method 3(Max voltage): 2.95V(2.9V-3.0V) @30min
h.full charge detection method 4(Timer): 5h(4.5h-5.5h) @fast charging stage
i. Reverse leakage current: less 80uA
j. charging full rate: More than 80% of capacity
k. indicator: Dual color led or single color Led at Transmitter
a.input: USB or 5V,12V adaptor
b.fast charging current: 250mA (180mA-320mA)
c. trickle charing current:20mA
d. Transmission distance:5mm (3mm-10mm)
e. full charge detection method 1(-*Ｖ): 10mV(0mV-10mV)
f. full charge detection method 2(Max temp): 60°C(55°C-60°C)
g:full charge detection method 3(Max voltage): 2.95V(2.9V-3.0V) @30min
h.full charge detection method 4(Timer): 5h(4.5h-5.5h) @fast charging stage
i. Reverse leakage current: less 80uA
j. charging full rate: More than 80% of capacity
k. indicator: Dual color led or single color Led at Transmitter
- Place of Origin:
- China
- Keywords:
- wireless, charger, battery
