Machine Vision Lighting
Machine Vision LightingContinuous Selling Item
Machine Vision Lighting

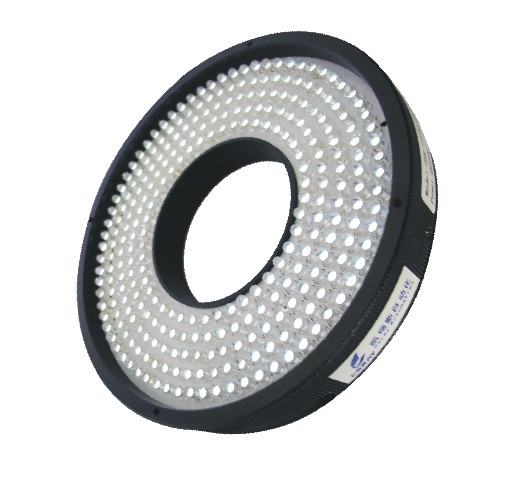

Ring lights have the features of high intensity in the centre illumination area and no shadow.
Bar lights have the features of flexible adjustment of illumination height, illumination area, and illumination angle.
Bar lights unit is surrounded by four independent bar lights on each side above the objects, which can be adjusted according to the requirements of the detecting objects in line with the lighting angle and intensity to get the best illumination.
Line light is to focus the light through cylindrical lens with high intensity, is the light especially for array camera, and is dedicated for continuous inspection of assembly line in printing and textile industry.
Dome lights with the unique reflection structure can achieve even spread illumination, which makes the intensity of the whole image is uniformity.
Flat light with high-density LED array can achieve equality and high intensity illumination. Flat lights can highlight the high clarity shape with the high-brightness background
Flat ring lights achieve no shadow through diffusion plate of special structure to change LED illumination, which have small reflection, uniform illumination, and compact structure.
Coaxial parallel lights adopt special optical lens group to achieve illuminating the product surface vertically and uniformly; therefore clearly highlight bump defects on the flat surface.
Coaxial lights use spectroscope, for which LED light through translucent mirror becomes light coaxial with the lens, the theory is to use special material to inhibit the reflection of the semi-permeable mirror to eliminate image ghosting; therefore to improve image clarity.
Spot lights use unique focus design to have bright and even illumination. Spot lights work with telecentric lens as coaxial lights
AOI is the dedicated light for SMT with the combination of R, G and B three colors and the theory is to extract 3D information of objects with 2D colours.
Bar lights have the features of flexible adjustment of illumination height, illumination area, and illumination angle.
Bar lights unit is surrounded by four independent bar lights on each side above the objects, which can be adjusted according to the requirements of the detecting objects in line with the lighting angle and intensity to get the best illumination.
Line light is to focus the light through cylindrical lens with high intensity, is the light especially for array camera, and is dedicated for continuous inspection of assembly line in printing and textile industry.
Dome lights with the unique reflection structure can achieve even spread illumination, which makes the intensity of the whole image is uniformity.
Flat light with high-density LED array can achieve equality and high intensity illumination. Flat lights can highlight the high clarity shape with the high-brightness background
Flat ring lights achieve no shadow through diffusion plate of special structure to change LED illumination, which have small reflection, uniform illumination, and compact structure.
Coaxial parallel lights adopt special optical lens group to achieve illuminating the product surface vertically and uniformly; therefore clearly highlight bump defects on the flat surface.
Coaxial lights use spectroscope, for which LED light through translucent mirror becomes light coaxial with the lens, the theory is to use special material to inhibit the reflection of the semi-permeable mirror to eliminate image ghosting; therefore to improve image clarity.
Spot lights use unique focus design to have bright and even illumination. Spot lights work with telecentric lens as coaxial lights
AOI is the dedicated light for SMT with the combination of R, G and B three colors and the theory is to extract 3D information of objects with 2D colours.
- Place of Origin:
- China
