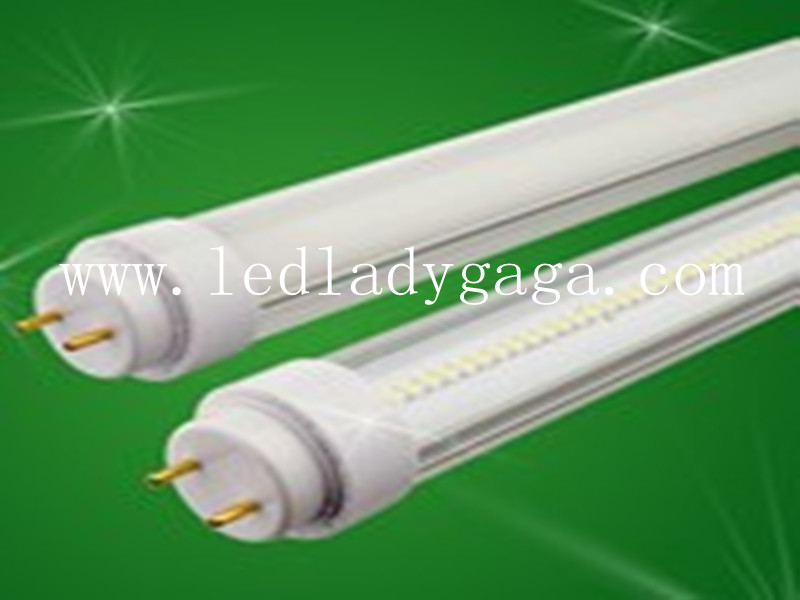

T8/t10 Led Tube
T8/t10 Led Tube , LG10-T10-22W-150Item Code / Model Number:
LG10-T10-22W-150
T8/t10 Led Tube
1. Caps rotatable, easy to adjust beaming angle
2. Isolating circuit design
3. Wide scope input voltage: AC85V~300V
4. Professional design against electric shock
5. Power Factor: 0.85~0.99
6. CRI (color rendering Index): 74-85 Ra
7. Lift Span: 50000 ~ 80000 hours
8. LED Current: 15~18mA
9. Aluminum heat sink body ensures long life
10. Matt cover or line-shape cover, no glare
Installation Guide:
A. Installation: remove the ballast and starter before install LED tube
B. How to change the beaming angle:
step a: take off the tube, make sure on both sides, the angle mark are all on the degree of 90
step b: on both sides, change the angle mark to a same degree that you need
step c: install the tube into the fixture
2. Isolating circuit design
3. Wide scope input voltage: AC85V~300V
4. Professional design against electric shock
5. Power Factor: 0.85~0.99
6. CRI (color rendering Index): 74-85 Ra
7. Lift Span: 50000 ~ 80000 hours
8. LED Current: 15~18mA
9. Aluminum heat sink body ensures long life
10. Matt cover or line-shape cover, no glare
Installation Guide:
A. Installation: remove the ballast and starter before install LED tube
B. How to change the beaming angle:
step a: take off the tube, make sure on both sides, the angle mark are all on the degree of 90
step b: on both sides, change the angle mark to a same degree that you need
step c: install the tube into the fixture
- Place of Origin:
- China
- Brand:
- Ledladygaga
- Keywords:
- led tube, led tube light, t8 led tube
