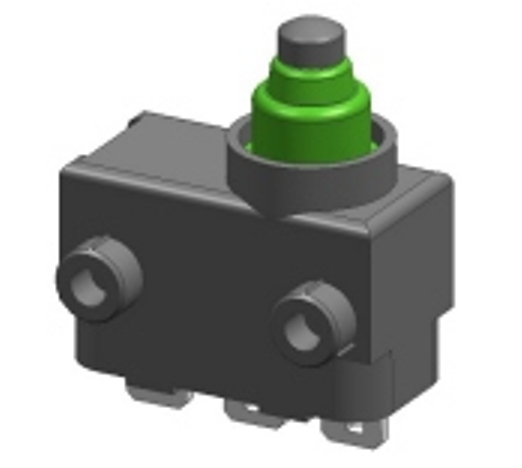

Zing Ear Subminiature Water & Dust Tight Micro Switch (g3)
Zing Ear Subminiature Water & Dust Tight Micro Switch (g3), G3 SeriesItem Code / Model Number:
G3 Series
·G3 Series
·Dust and Water Proof (IP67)
·Small Compact Size
·Long Life & High Reliability
·Variety of Terminals & Levers
·Widely used in automotive electronics, appliance, and industrial control
·Global Safety Approval: UL, CUL, ENEC, CQC, RoHS
·OEM, ODM Welcome
·Custom Designs Available
Application
Car, Toys, Eletronic Tooth Brush, Communication, Air Conditioner, etc.
Parameters:
·W1 Rating:
ENEC: 0.1A /48VDC; 0.1A 125/250 VAC, 40T85, 5E4,μ
UL: 0.1A /48VDC; 0.1A 125/250 VAC, 5A 30VDC T85
·W2 Rating:
ENEC: 5A 125/250VAC, 5A 30VDC, 40T85, 5E4,μ
UL: 5A 125/250VAC, 5A, 30VDC T85
·W3 Rating:
ENEC: 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, 40T85,μ2E4
UL: 10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, T85
·Operating Frequency: Mechanical: 60 times/minute; Electrical: 10~30 times/minute
·Contact Resistance (Initial Value): With Terminal: 50MΩ Max, With Wire: 100MΩ Max (Depends on wire length)
·Insulation Resistance (at 500VDC): 100MΩ Min
·Dielectric Strength: Between Terminals: AC 1000V 50-60Hz 1 min, Between Terminals & Housing: AC 1500V 50-60Hz 1 min
·Storage Temperature: -40°C ~ +85°C
·Storage Humidity: 85% RH Max
·Protection grade: With terminal: IEC IP67 (terminal not included), With Wire: IEC IP67
·Electric-Shock Safeguard Grade: Class II
·PTI: 250
·Life Expectancy: Mechanical: Over 1,000,000cycles (60 cycles/min) . Electrical: 2E4 ~10E4 cycles(Depend on part number)
·Weight: Approx. 7 g (with terminal and without lever)
·Dust and Water Proof (IP67)
·Small Compact Size
·Long Life & High Reliability
·Variety of Terminals & Levers
·Widely used in automotive electronics, appliance, and industrial control
·Global Safety Approval: UL, CUL, ENEC, CQC, RoHS
·OEM, ODM Welcome
·Custom Designs Available
Application
Car, Toys, Eletronic Tooth Brush, Communication, Air Conditioner, etc.
Parameters:
·W1 Rating:
ENEC: 0.1A /48VDC; 0.1A 125/250 VAC, 40T85, 5E4,μ
UL: 0.1A /48VDC; 0.1A 125/250 VAC, 5A 30VDC T85
·W2 Rating:
ENEC: 5A 125/250VAC, 5A 30VDC, 40T85, 5E4,μ
UL: 5A 125/250VAC, 5A, 30VDC T85
·W3 Rating:
ENEC: 10(2)A 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, 40T85,μ2E4
UL: 10.1A 1/10HP 125/250VAC, 0.5A 125VDC, 0.25A 250VDC, T85
·Operating Frequency: Mechanical: 60 times/minute; Electrical: 10~30 times/minute
·Contact Resistance (Initial Value): With Terminal: 50MΩ Max, With Wire: 100MΩ Max (Depends on wire length)
·Insulation Resistance (at 500VDC): 100MΩ Min
·Dielectric Strength: Between Terminals: AC 1000V 50-60Hz 1 min, Between Terminals & Housing: AC 1500V 50-60Hz 1 min
·Storage Temperature: -40°C ~ +85°C
·Storage Humidity: 85% RH Max
·Protection grade: With terminal: IEC IP67 (terminal not included), With Wire: IEC IP67
·Electric-Shock Safeguard Grade: Class II
·PTI: 250
·Life Expectancy: Mechanical: Over 1,000,000cycles (60 cycles/min) . Electrical: 2E4 ~10E4 cycles(Depend on part number)
·Weight: Approx. 7 g (with terminal and without lever)
- Place of Origin:
- China
- Brand:
- Zing Ear
- Delivery Time:
- 30 days
- Standard / Certificates:
- UL, CUL, ENEC, CQC, RoHS
- Keywords:
- micro switch, microswitch, switch
