Spring Hangers And Supports

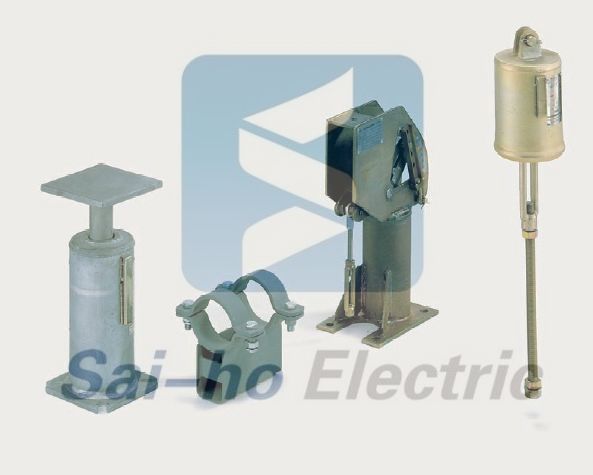

Variable spring pipe hanger and support
58H,58 V and 80V Constant Force Spring Hangers(US ITT Technology)
1.Classification and Model
Classification Model Code Installation Form
Horizontal Type Constant Force Spring Hangers 58H A Type,B Type,C Type,E Type,G Type
Vertical Constant Force Spring Hangers 58V A Type,B Type,C Type,D Type,E Type
Support Type Constant Force Spring Hangers 80V F Type
A Type-Duplex Pull Rod Connection D Type-Top Surface Connection
B Type-Single Hanger Plate Connection E Type-Pedestal Connection
C Type-Double Hanger Plate Connection G Type-Parallel Connection of Constant Force Spring Hangers
2.Applicable Range
The 58H, 48V and 80V constant force spring hangers (US ITT Technology)are applicable to 38mm(1 1/2")to 508mm (20")displacement, 12.7mm(1/2")interval and 12daN to 39,690daN loading capability.
Product details
Material:carbon steel,stainless steel,alloy steel and special material for the special parts.
Size:according to the drawing or requirement
Standard:ISO,JIS,DIN,GB
Application:support pipe and equipments subject to vertical movement.
Displacement range:VS(0--180)
TD:(0-120)
Load range:154-217384N
Temperature range:-20-- +200
A distinguishing feature of Saiho constant hangers is their unique operating concept. It puts into effect the principle of the parallelogram of forces, which provides the following fundamental advantages: absolute constancy based on a principle load-symmetrical mechanics and structural shape no leverage deflection or momentum effects directly readable load and travel scales load adjustment of 40 - 100 % of nominal load special pre-relaxed springs 10,000 load cycles at constant accuracy approval by independent authoritiesA load range of 70 - 9000 lbs, and a travel range of up to 36 inches are covered as standard.
