Pv Junction Box
Pv Junction BoxItem Code / Model Number:
Pv Junction Box

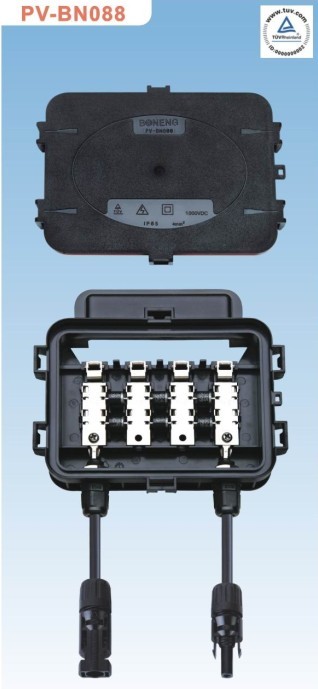

PV-BN088 PV Junction Box is newly-designed product especially for solar module with high current compased of 156x156 solar cells. It is well performed in radiation release, high max current and energy saving. It can be used in connecting with batteries panel of solar energy. This product has been approved by latest TUV certificate.
Main Technical Specification:
Rated Voltage: DC1000V
Rated Power: 320W
Max current Tj: 13A
Ambient Temperature: -40~+85 Centigrade
Protection Calss: Class Two
Protection Degree: IP65
Rated Connecting Capacity: 4, 6mm2
Main Speciality:
With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;
To meet the using requirement under bad outdoor condition;
Diode can be 3 in series or 6 parallel connections;
All double fastness connection.
Main Technical Specification:
Rated Voltage: DC1000V
Rated Power: 320W
Max current Tj: 13A
Ambient Temperature: -40~+85 Centigrade
Protection Calss: Class Two
Protection Degree: IP65
Rated Connecting Capacity: 4, 6mm2
Main Speciality:
With the capacity of anti-aging and resistance to ultraviolet radiation on the outer cover;
To meet the using requirement under bad outdoor condition;
Diode can be 3 in series or 6 parallel connections;
All double fastness connection.
- Place of Origin:
- China
- Brand:
- Boneng
- Payment Terms:
- L/C;T/T
- Standard / Certificates:
- TUV, UL, IP66
- Keywords:
- pv junction box, photovoltaic junction box, junction box of pv module
