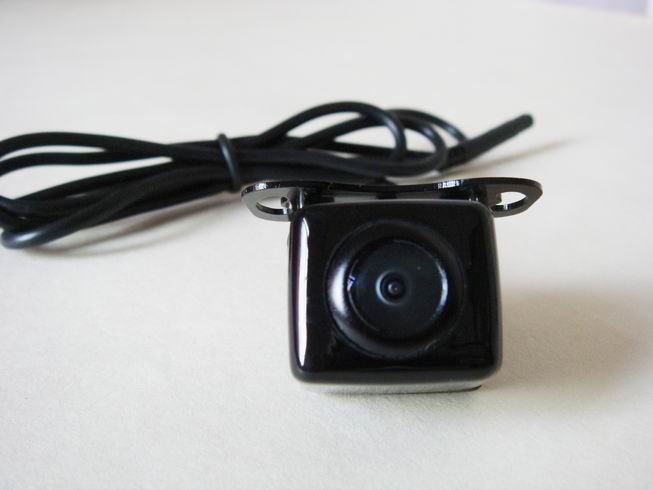

Universal Rearview Backup Camera Cmos Pc1030 Z968
Universal Rearview Backup Camera Cmos Pc1030 Z968Continuous Selling Item
Universal Rearview Backup Camera Cmos Pc1030 Z968
Model#: Z968
Description:
Universal Rearview Camera
Material: Zinc Alloy
Color: Black
Dimension: 20L*23W*20H MM
Image Sensor: PC1030
Signal System: NTSC/PAL
Effective Pixels: 648×488
Sensing Area: 5.55mm×5.55mm
Sync System: Internal
Horizontal Resolution: 420TVL
Min Illumination: 0.2Lux
Diagonal Angle: 170Deg.
Video Output: RCA, 1.0Vp-p, 75ohm
SNR: Better than 48db
Waterproof Grade: IP66-IP67
Current Consumption: max200MA
Nominal Voltage: DC12V
Working Environment:
-30Deg.-65Deg.,RH95%MAX
Night Vision: Optional
Image Switch: Optional
Guard Line: Optional
Other: Auto White Balance,
AGC,
Backlight Compensation
More details welcome to browse our website or Email to us. Thank you.
Description:
Universal Rearview Camera
Material: Zinc Alloy
Color: Black
Dimension: 20L*23W*20H MM
Image Sensor: PC1030
Signal System: NTSC/PAL
Effective Pixels: 648×488
Sensing Area: 5.55mm×5.55mm
Sync System: Internal
Horizontal Resolution: 420TVL
Min Illumination: 0.2Lux
Diagonal Angle: 170Deg.
Video Output: RCA, 1.0Vp-p, 75ohm
SNR: Better than 48db
Waterproof Grade: IP66-IP67
Current Consumption: max200MA
Nominal Voltage: DC12V
Working Environment:
-30Deg.-65Deg.,RH95%MAX
Night Vision: Optional
Image Switch: Optional
Guard Line: Optional
Other: Auto White Balance,
AGC,
Backlight Compensation
More details welcome to browse our website or Email to us. Thank you.
- Place of Origin:
- China
- Packing:
- 50Sets/CTN
- Payment Terms:
- ;T/T;Cash
- Delivery Time:
- 2-3 Working
- Min Order Quantity:
- 300Sets
- Standard / Certificates:
- FCC,CE
