RG 213 Coaxial Cable
Impedance: 50+/-2 Ohm
Velocity of Propagation: 66%
Capacitance: 30.8pF/m
Return Loss: 20dB min

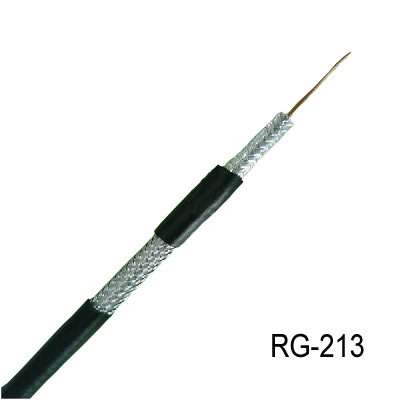

RG 213 Coaxial Cable (50ohm)

Specifications:

BC: Bare Copper TC: Tinned Copper

CCA: Copper Clad Aluminum

AL: Aluminum

1)7x0.75mm BC Conductor +7.11mm Solid PE Insulationl +

16x8x0.12mm BC 90% Braiding +10.3mm PVC Jacket

2)Customers'' specifications are wellcomed.

Note:

1) Center conductor: TC, and BC available, CCA;

2) Al-foil: Non-bonded Al-foil, bonded Al-foil, double bonded Al-foil, and double non-bonded Al-foil are available;

3) Braiding wire: AL, BC and TC available;

4) Braiding wire diameter: 0.10, 0.12, 0.13, 0.14, 0.15, 0.16mm available;

5) Braiding net: 80, 96, 120, 128, 144 and more available;

6) Braiding coverage: Between 70- 97% available;

7) PVC jacket of Flame retardant, UV, or UL available.

Characteristics:

Impedance: 50+/-2 Ohm

Velocity of Propagation: 66%

Capacitance: 30.8pF/m

Return Loss: 20dB min

Application:

Used for high performance digital and analog data transmission.
