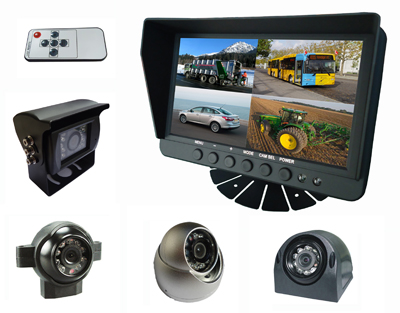

Car Quad Split Rearview Camera System

Model no: TD0704AS

System features
1. 7" QUAD monitor system, support up to 4 camera inputs
2. Independent trigger wire for each camera
3. System will automatically turn on once vehicle is placed in reverse.
4. Mirror/ Normal image can be set independently .
5. 7 languages OSD menu
6. With remote controller
7. Single View/ Split view/ Quad view selectable
8. Trigger priority: CAM 1> CAM 2> CAM 3> CAM 4
9. With short circuit protection and overload protection
10. The 7" quad rearview system includes 1pc 7" monitor + 4pcs CCD cameras + 4pcs 20M extension cables

Monitor Specifications
Model No.: TD0704A
Screen Size: 7" / 16: 9
Brightness: 350cd/ m2
Resolution: 336960pixels
Contrast ratio: 300: 1
Wide view angle( CR> 10) : up/ down: 40/ 60 left/ right: 60/ 60
Video input: 4Channels
Color system: PAL/ NTSC
Housing protection class: IP30
Power supply: 12V / 24V DC
Power consumption: less than 7W
Operating temperature: -20 to + 60
Storage temperature: -30 to + 80
Dimension: 180mm(L) x 124mm(W) x 50mm(D)
Weight Approx: 720g

Camera specifications
Camera model no.: TV8XXN/P-E + TV8XXN/P-F + TV8XXN/P-H + TV8XXN/P-I
Chip brand: 1/ 4" SONY CCD
Effective pixels: PAL: 500x582 NTSC: 510x492
Resolution: 380TVL
System: PAL / NTSC
Sync. system: Internal
Minimum illumination: 0LUX ( IR LED ON)
S/ N ratio ( AGC off) : 48 dB
White balance: ATW
Gamma correction: 0.45
Electronic shutter: PAL: 1/ 50-1/ 100, 000sec; NTSC: 1/ 60-1/ 100, 000
Gain control: AUTO
Back light compensation: ON
With IR LEDs for clear night vision
Lens type: 2.6mm/ F2.0
Lens angle: 110 degree (Diagonal)
Video output: 1Vpp, 75 Ohms
IP class: IP68
Operation Temp.: -20 ~ + 60
Supply voltage: DC6-20V
Power consumption: 2W( max)
