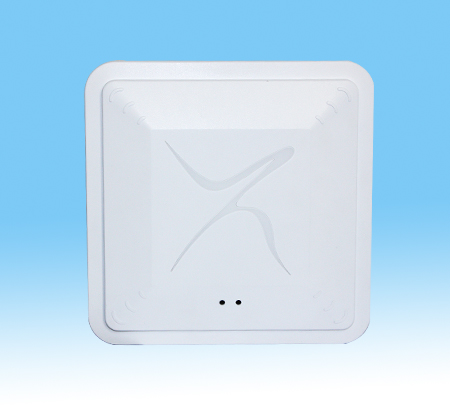

Fdy-8120 Uhf Rfid Middle Range Integrated Reader

FDY-8120 uhf rfid middle range integrated reader

Product parameters:
Working frequency：902~928MHz or 865~868MHz or customized
Reading distance：reliable reading distance 3-5m ，max.8m.
Product size：280X280X40mm
Working voltage：DC-12V±2V
Max. power consumption：5W
Working temp.：-35℃~+65℃
Storage temp.：-45℃~+95℃
Protocols supporting：ISO-18000-6C（EPC G2）、ISO-18000-6B（optional）
Antenna plus：8dbi circular polarization
Antenna power：connecting antenna power 0.5W（adjustable）
Data interface：Wiegand26\34\42、10/100M self-adaptable Ethernet（need customize）、RS232、RS485 data interface；leave external triggering signal connecting port in advance
Fast identification：can identify fast-moving tags that moving speed is more than 120km/h
Working hint：buzzer
Package weight：2.0Kg
Accessories：1 set adjustable installing bracket；1 pc 12V power supply；1 pc power supply wire

Product features:
•reliable reading range can reach upto 5m
•compatible 6C and 6B agreement
•support multiple language SDK package, system connecting is convinient
•can customize RJ45 interface
• integrative industrial design, water-proof, sun-defending, convenient installation
