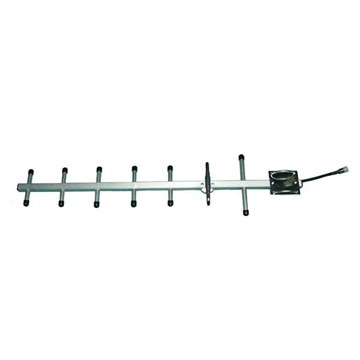

350-450mhz 10dbi Uhf Vhf Yagi Antenna With Dual Polarization 7 Elements
350-450mhz 10dbi Uhf Vhf Yagi Antenna With Dual Polarization 7 Elements , BM-350/450-10-7Item Code / Model Number:
BM-350/450-10-7
350-450mhz 10dbi Uhf Vhf Yagi Antenna With Dual Polarization 7 Elements
Model:BM-350/450-10-7
Specification of Yagi Antenna:
Frequency Range: 350-450MHz
Gain: 10 dBi
VSWR:≤1.8
Input Impedance: 50Ω
Horizontal Beam width: 44°
Vertical Beam width: 40°
Front to Back Ratio: ≥12 dB
Max. Power: 50W
Polarization: Horizontal or Vertical
Connector Type: N-Female
Lightning Protection: DC Ground
Radiating Element Material: Aluminum
Number of Element: 7 Elements
Rated Wind Velocity: 210 km/h
Weight:0.85 kg
Dimension: 900 mm
Dimension of mounting pole: Ø38-Ø52mm
Features of Yagi-uda Antenna:
7 elements, High Gain, Low VSWR;
Light Weight, Easy to assemble;
Adopt good quality Aluminum, Strong Corrosion Resistance;
Supply with the Mounting Kits
Specification of Yagi Antenna:
Frequency Range: 350-450MHz
Gain: 10 dBi
VSWR:≤1.8
Input Impedance: 50Ω
Horizontal Beam width: 44°
Vertical Beam width: 40°
Front to Back Ratio: ≥12 dB
Max. Power: 50W
Polarization: Horizontal or Vertical
Connector Type: N-Female
Lightning Protection: DC Ground
Radiating Element Material: Aluminum
Number of Element: 7 Elements
Rated Wind Velocity: 210 km/h
Weight:0.85 kg
Dimension: 900 mm
Dimension of mounting pole: Ø38-Ø52mm
Features of Yagi-uda Antenna:
7 elements, High Gain, Low VSWR;
Light Weight, Easy to assemble;
Adopt good quality Aluminum, Strong Corrosion Resistance;
Supply with the Mounting Kits
- Place of Origin:
- China
- Brand:
- Dawn
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 2-5 days
- Min Order Quantity:
- 1 Unit
- Standard / Certificates:
- ISO9001:2008
- Keywords:
- yagi antenna, yagi-uda antenna, vhf uhf antenna
