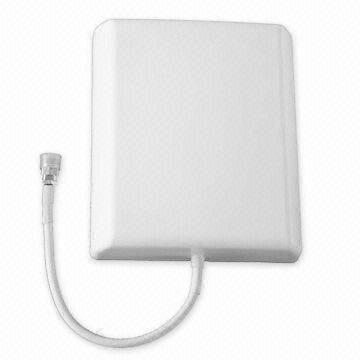

698 To 2700 Mhz 7dbi Wall-mounted Antenna Suitable For Gsm Cdma
698 To 2700 Mhz 7dbi Wall-mounted Antenna Suitable For Gsm CdmaContinuous Selling Item
698 To 2700 Mhz 7dbi Wall-mounted Antenna Suitable For Gsm Cdma
Model: DB-698/2700-7-65
Specification:
Frequency Range:698-2700MHz
Gain:7dBi
Horizontal Beam width:65°
Vertical Beam width:55°
VSWR:≤ 2.0
Input Impedance:50Ω
Electrical Down tilt:0°
Front to Back Ratio:≥15dB
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radome Material:ABS
Radiating Element Material: Aluminum
Weight:0.5kg
Dimension:210×180×43mm
Features:
High Gain, Low VSWR;
Light weight, Good appearance;
Adopt good quality ABS, Long time Operation;
With customer mounting plate, Easy to mount.
Specification:
Frequency Range:698-2700MHz
Gain:7dBi
Horizontal Beam width:65°
Vertical Beam width:55°
VSWR:≤ 2.0
Input Impedance:50Ω
Electrical Down tilt:0°
Front to Back Ratio:≥15dB
Max. Power:50W
Polarization:Vertical
Connector Type:N-Female
Lightning Protection:DC Ground
Radome Material:ABS
Radiating Element Material: Aluminum
Weight:0.5kg
Dimension:210×180×43mm
Features:
High Gain, Low VSWR;
Light weight, Good appearance;
Adopt good quality ABS, Long time Operation;
With customer mounting plate, Easy to mount.
- Place of Origin:
- China
- Brand:
- Dawn
- Payment Terms:
- L/C;T/T;Cash
- Delivery Time:
- 2-5
- Min Order Quantity:
- 1 unit
- Standard / Certificates:
- ISO9001:2008
