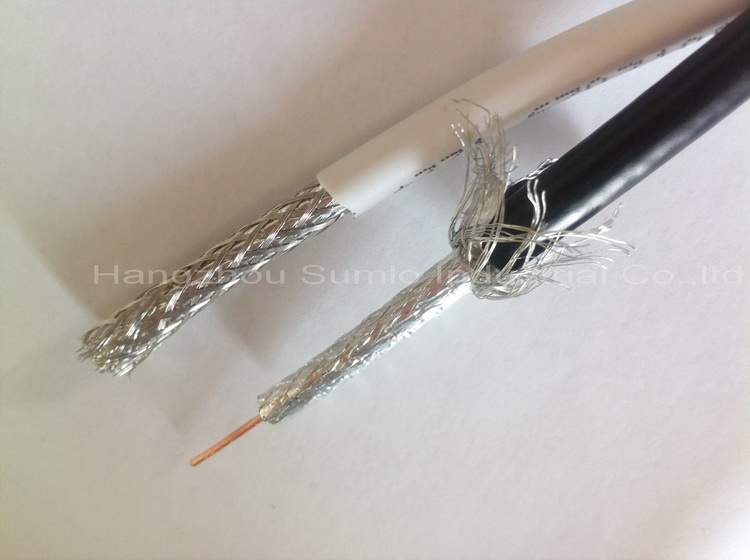

Coaxial cable RG6
Coaxial cable RG6Item Code / Model Number:
Coaxial cable RG6
This series RG6 Speicfication Is According Commscope's Standard, Standard Shield/tri-shield, Quad Shield Cable. With messenger/without messenger
Foam PE insulation, 75 ohm, low dB loss, easy installation
Construction
- Inner conductor: 1.02CCS / Bare copper
- Insulation:4.57mm Foam Polyethylene
- Shield: Aluminum,Tinned,Bare Copper braiding
- Jacket: 6.8mm FR-PVC,UV rated for Sunlight resistance or PE compound, LSZH , ROHS complianced
- Messenger: with or without
RG6 Series:
F640BV/BVM, F660BV/BEM, F690BV/BEM, F660BE/BEM,F690BE/BEM, F660 TRI-Shield OR QUAD-Shield
RG Series coaxial cable :
Rg6: F660bv, Rg6 1048, Rg6-f690bv, Flooded, With Messenger,
Rg11: F1160bv, F1190bv, F1160bvm, Flooded, With/without Messenger
Qr540: Qr540 Jca, Qr540jcam,
Solide Pe Dielectric Cable: Rg58c/u, Rg59b/u, Rg213-mil Standard.
With/without Pet Foil.
100m/roll Packing, 1000ft/305m Wooden Spool Packing.
Foam PE insulation, 75 ohm, low dB loss, easy installation
Construction
- Inner conductor: 1.02CCS / Bare copper
- Insulation:4.57mm Foam Polyethylene
- Shield: Aluminum,Tinned,Bare Copper braiding
- Jacket: 6.8mm FR-PVC,UV rated for Sunlight resistance or PE compound, LSZH , ROHS complianced
- Messenger: with or without
RG6 Series:
F640BV/BVM, F660BV/BEM, F690BV/BEM, F660BE/BEM,F690BE/BEM, F660 TRI-Shield OR QUAD-Shield
RG Series coaxial cable :
Rg6: F660bv, Rg6 1048, Rg6-f690bv, Flooded, With Messenger,
Rg11: F1160bv, F1190bv, F1160bvm, Flooded, With/without Messenger
Qr540: Qr540 Jca, Qr540jcam,
Solide Pe Dielectric Cable: Rg58c/u, Rg59b/u, Rg213-mil Standard.
With/without Pet Foil.
100m/roll Packing, 1000ft/305m Wooden Spool Packing.
- Place of Origin:
- China
- Brand:
- Sumlo cable or OEM
- Price Terms:
- FOB Ningbo or Shanghai
- Other Price Terms:
- CIF, CFR, DDU, EXW...
- Packing:
- 100m/roll Packing, 1000ft/305m Wooden Spool Packing.
- Payment Terms:
- L/C;T/T;D/P
- Delivery Time:
- 20 days
- Min Order Quantity:
- 50kms
- Standard / Certificates:
- CE, ROHS,ISO, UL
- Keywords:
- coaxial cable rg6, coaxial cable, rg6
