Neway Cnc Equipment (suzhou) Co., Ltd.

Cnc Lathe

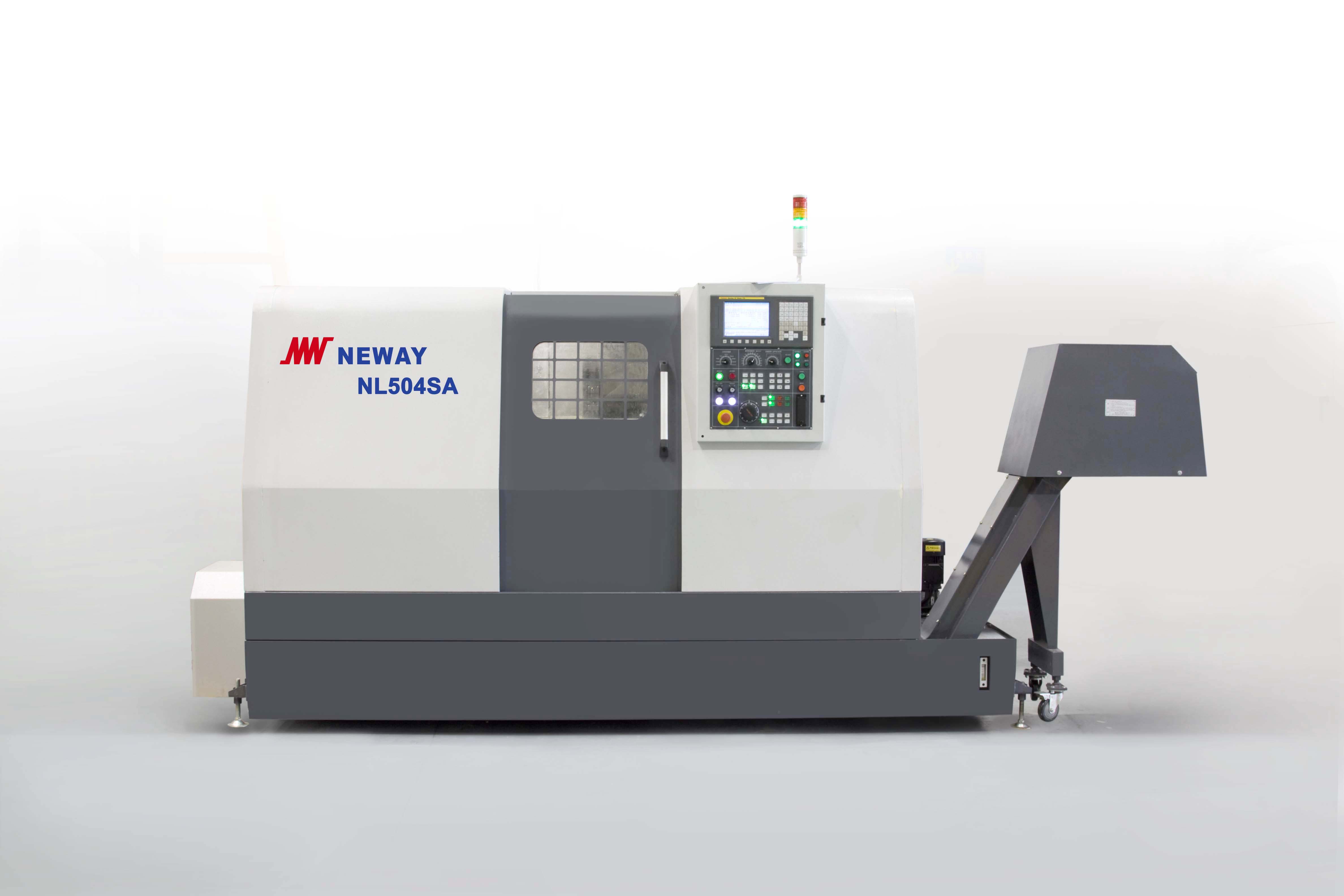

Cnc Lathe, NL504SA
Item Code / Model Number:
NL504SA

Cnc Lathe Cnc Lathe
Item Unit Parameters Remarks
Machining ranges Max. swing over bed/ saddle mm Φ505/Φ340
Max. machining diameter(plate/axis) mm Φ500/Φ250
Max. machining length mm 1000
Dia. of through spindle hole mm Φ65
Max.Dia of workpiece through spindle hole mm Φ50
Travel X-axis mm 250
Z-axis mm 1100
Spindle Output power kw Motor 11
The form of spindle end A2-6
Spindle speed rpm 50-3000
Chuck inch  10” Hydraulic solid chuck
Tail
stock Dia./travel of the sleeve mm 100/100
Mandrel taper hole Morse 5#
Feed speed Rapid feed speed(X-axis) m/min 8
Rapid feed speed(Z-axis) m/min 12
Cutting feed rate mm/min 1~8000
Carriage No. of tool stations Station 8
Tool indexing time Second/
Station 0.5
Size of lathe tool mm 25´25
Max. diameter of boring bar mm 40
precision Positioning accuracy (X-axis) mm 0.016
Positioning accuracy (Z-axis) mm 0.025
Repeatability(X-axis) mm 0.007
Repeatability(Z-axis) mm 0.010
Others Power capacity kV A 20
Cooling tank capacity L 300
Dimension(length ×width ×height) mm 3735×1500×1750
Net weight kg 4500
  • Brand:
  • Neway
  • Payment Terms:
  • L/C;T/T;D/D;Cash;D/P
  • Delivery Time:
  • 45 days
  • Min Order Quantity:
  • 1set
  • Standard / Certificates:
  • CE,ISO
  • Keywords:
  • neway, cnc, lathe
