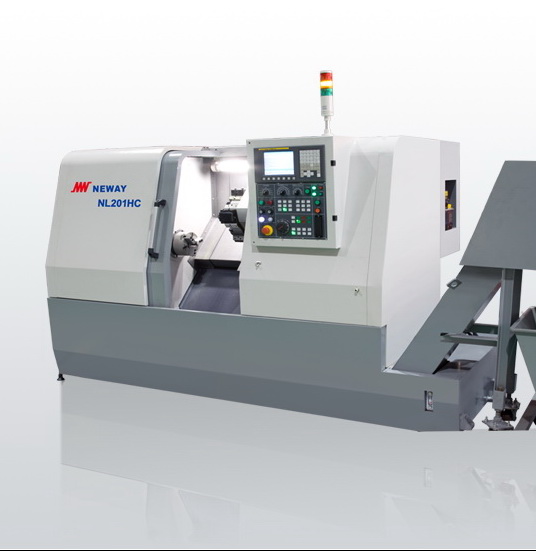

cnc lathe

Item Unit Parameters Remarks
Machining ranges Max. swing over bed mm Φ450
Max. machining diameter mm Φ200
Max. machining length mm 360
Dia. of through spindle hole mm Φ56
Max.Dia of workpiece through spindle hole mm Φ43
Travel X-axis mm 125
Z-axis mm 400
Spindle Output power kw 7.5/11
The form of spindle end A2-5
Max. spindle speed rpm 6000
Chuck inch 6” Hydraulic hollow chuck
Feed rate Rapid feed rate（X-axis） m/min 24
Rapid feed rate（Z-axis） m/min 30
Cutting feed rate mm/min 1~8000
Carriage No. of tool stations Station 8
Tool indexing time Second/
Station 0.5
Size of lathe tool mm 25´25
Max. dia. of boring bar mm 32
Machine tool accuracy Positioning accuracy (X-axis) mm 0.006
Positioning accuracy (Z-axis) mm 0.008
Repeatability（X-axis） mm 0.004
Repeatability（Z-axis） mm 0.006
Others Power capacity kVA 20
Cutting liquid groove volumn L 160
Machine dimension
(length×width×height） mm 1790´1520´1650
Net weight kg 4000
