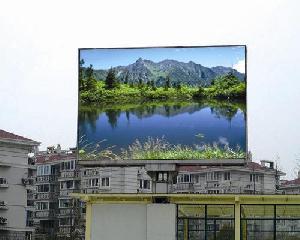

Full Color Led Panel Vedio

Item Technical Parameters
Pixel Pitch(mm) 12
Pixel Density(dots/m2) 6944
Pixel Composition 2R1G1B
Module Size(Lmm×Hmm) 192*192
Module Resolution(dots) 16*16
Brightness(cd/m2) ≥5000
Viewing Angle(degree) H≤100 degree, V≤50 degree
Scan Mode 1/2Scan
Max. Power Consumption(w/m2) 1000
Average Power Consumption(w/m2) 180-360
Cabinet Weight(kg) 35
Unit Cabinet Sizemm(Lmm×Hmm) 768*576
Gray Scale Recommended 4096 level
Control Mode Video frequency synchronization
Effective Communication Distance(without relay) Unshielded Twisted-Pair net line transmission distance 100 meters,max transmission distance 130 meters.
Refresh Frame Frequency LED screen refresh frame frequency recommended is 480Hz
Blind Spot Rate 0.0003 LED Display industry standard0.0003
MTBF ≥10000Hours
Lifespan ≥50000Hours
Power Supply Mode AC220V/50HZ or AC110V/60HZ
Environment Temperature Storage:-40 - +85 celsius
Operation:-20 - +45 celsius

Operation Environment Humidity 0.1 - 0.9
