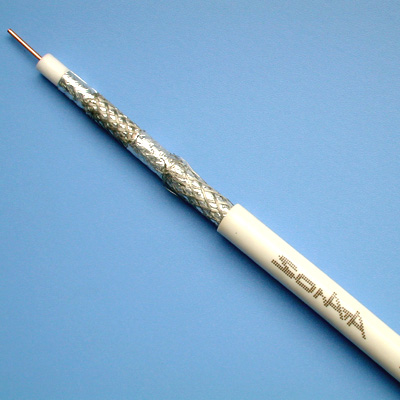

RG59 Coaxial Cable
RG59 Coaxial Cable, RG59Item Code / Model Number:
RG59
RG59 Coaxial Cable
Application: The coaxial drop cables are applied to connecting the optical network units to data, TV and computer signals with transmission features of broadband, high speed, low loss and dual directions.
RG59 coaxial cables at best prices: 0.81mm Cu/CCS Conductor + 3.66mm PE Foam + Unbonded/Bonded/Al foil + Al /TC/BC braid + 6.10mm PVC Jacket
Specification:
1. Inner conductor: Bare Copper or CCS (Copper Clad Steel) available
2. Braid: Al, BC, or Tinned Copper available; 60% coverage or up to order
3. Shield: Standard, Tri-shield or Quad-shield available
4. Jacket: PVC, PE, LSF, LSZH available
5. Packing 100m/200m/305m/reel (roll) or cut to order length.
Electrical properties:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 82%
Capacitance: 55.1 pF/m
RG59 coaxial cables at best prices: 0.81mm Cu/CCS Conductor + 3.66mm PE Foam + Unbonded/Bonded/Al foil + Al /TC/BC braid + 6.10mm PVC Jacket
Specification:
1. Inner conductor: Bare Copper or CCS (Copper Clad Steel) available
2. Braid: Al, BC, or Tinned Copper available; 60% coverage or up to order
3. Shield: Standard, Tri-shield or Quad-shield available
4. Jacket: PVC, PE, LSF, LSZH available
5. Packing 100m/200m/305m/reel (roll) or cut to order length.
Electrical properties:
Impedance: 75+/-3 Ohm
Velocity of Propagation: 82%
Capacitance: 55.1 pF/m
- Place of Origin:
- China
- Brand:
- Sonata
- Price Terms:
- FOB Shenzhen
- Packing:
- 100m/200m/305m/reel (roll) or cut to order length
- Payment Terms:
- L/C;T/T
- Delivery Time:
- 15-20 days
- Min Order Quantity:
- 10000meters
- Standard / Certificates:
- UL ROHS ISO9001:2000
- Keywords:
- china coaxial cable factory, antenna cable manufacturer, cctv cable supplier
