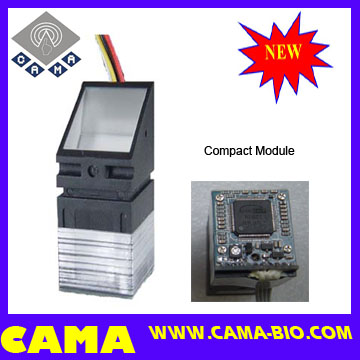

Integrated Biometric Module Sm20

Biometric module/fingerprint module
Integrate module with sensor together
Total optical reflection
Self learning function

Integrated image collecting and algorithm chip together, ALL-in-One
Widely applied in middle & low end products for OEM secondary development
Low power consumption, low cost, small size, excellent performance
Adopting high precise optical image element, identify correctly.
It combines a wide range of optical technology from fingerprint optical manufacturer home and abroad with super high image capturing ability.





Item Description
Sensor CAMA optical sensor
Glass material ZF1
Scan area 18mm*22mm
Fingerprint image 210 x 250 (pixel)
Resolution 500 DPI
Fingerprint template 496 bytes
Communication port UART
FRR < 0.1%
FAR < 0.001%
Identification speed 1:1 <0.5S; 1:N (200 fingerprints) <0.9S
Fingerprint capacity 3000
Work current < 100mA
Standby current < 20μA
Power supply DC 3.3V
Working temperature -10C- 60C
Working humidity 20% 80%
Dimensions 54*25*21mm
