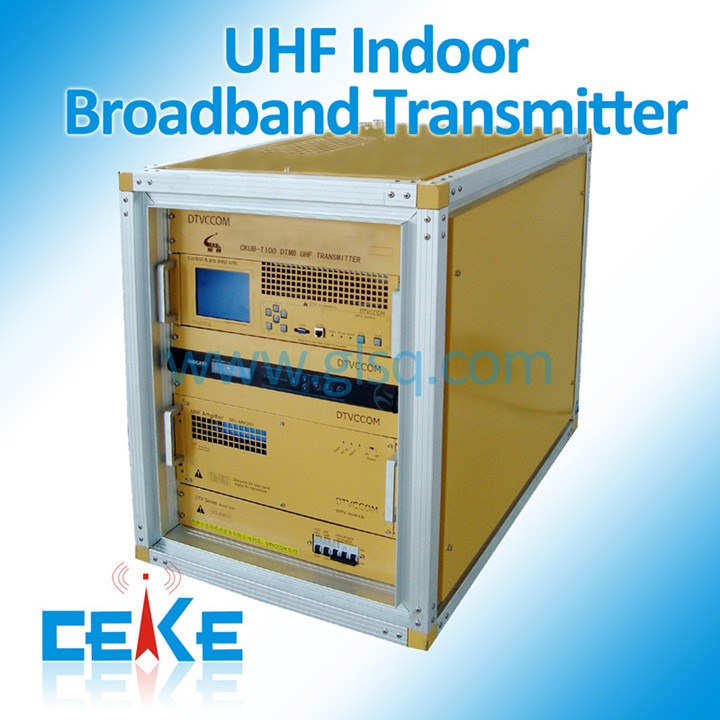

Sell 200w Uhf Dtv Transmitter

Model: CKUB-T200

Main features:

Wide-band frequency:(470-862MHz)
Low noise and power consumption
Extremely low group delay
Stable constant power output from ALC
Output VSWR detection protection
Suitable for DTV transmission system with single or multiple channels
Widely used in transmission of HFC,AML or MMDS TV signals
wireless DTV networking at a lower cost
Modular design faciliates installation and maintenance
Automatic and manually operated switching backup system available
Embedded lightning protector to avoid lightning overvoltage and instant overvoltage
Local monitoring and control
Wireless remote monitoring(optional)



Technical specification:

Frequency range:470-860MHz
Input signal level:87-117
Noise figure:3
Digital average output power:53
Power Consumption:1 KW
Power Supply Connector: IEC320
Cooling System Temperature-controlled forced air cooling
Operating Temperature Range:0 ~ +45°C
Operating Humidity:0 ~ 95%, non-condensing
Storage Temperature:-55 ~ +85°C
Storage Relative Humidity:0 ~ 95%, non-condensing
Size(W'H'D)/Weight:620mmX810mm X960mm /120kg
