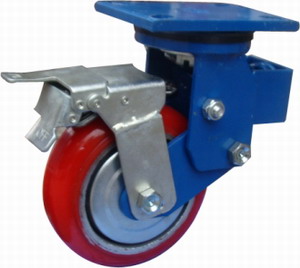

Light Duty-shock Absorption Wheel With Spring
Light Duty-shock Absorption Wheel With Spring, 13S-KU4200-A1Item Code / Model Number:
13S-KU4200-A1
Light Duty-shock Absorption Wheel With Spring
Wheel material: Korea type polyurethane cast iron core wheel with spring
Wheel dia. (mm) 100 130 150 200
Wheel width (mm) 50
Load capacity(kg.) 300 350 450 550
Overall size(mm) 180 215 225 264
Top plate size(mm) 105X78
Hole dia. On top plate(mm) 12.7
Thickness of steel plate reinforced(mm) 6
KingpinĂ˜ 20
Turning radius(mm) 90 130 140 165
Bearing type Ball bearing
Part No. 13S-KU4200-A1 13S-KU5200-A1 13S-KU6200-A1 13S-KU8200-A1
Character Adopted horizontal double spring and double bearing to assue good high shock absorption as well as avoid danger of spring separation by using other design,no noise,strong enough structure, suit for 400-600kg/car, even can protect load well by rolling speed at 20km/h
Wheel dia. (mm) 100 130 150 200
Wheel width (mm) 50
Load capacity(kg.) 300 350 450 550
Overall size(mm) 180 215 225 264
Top plate size(mm) 105X78
Hole dia. On top plate(mm) 12.7
Thickness of steel plate reinforced(mm) 6
KingpinĂ˜ 20
Turning radius(mm) 90 130 140 165
Bearing type Ball bearing
Part No. 13S-KU4200-A1 13S-KU5200-A1 13S-KU6200-A1 13S-KU8200-A1
Character Adopted horizontal double spring and double bearing to assue good high shock absorption as well as avoid danger of spring separation by using other design,no noise,strong enough structure, suit for 400-600kg/car, even can protect load well by rolling speed at 20km/h
- Place of Origin:
- China
- Brand:
- Kesheng
- Other Price Terms:
- EXW
- Packing:
- the bulk packing in shipping carton then will be packed in wooden pallet if necessary
- Payment Terms:
- T/T;M/T;Cash
- Delivery Time:
- 25 days
- Min Order Quantity:
- 100pcs
- Keywords:
- caster, casters and wheels, polyurethane caster wheel
